FusionServer 5298 V7
Thêm vào Yêu thíchForm Factor: 4U rack server
CPU: 2 x Intel® Xeon® Scalable (4th/5th Gen, up to 385 W)
Memory: 32 DDR5 DIMMs, 5600 MT/s
Storage: Up to 60 x 3.5" SAS/SATA, 8 NVMe SSDs, dual M.2
RAID: 0/1/5/6/10/50/60, advanced protection
Networking: 2 x OCP 3.0 NICs via FlexIO slots
Expansion: 6 PCIe 5.0 slots
Cooling: 12 hot-swappable fans, N+1 redundancy
Power: Redundant high-efficiency PSUs
Management: iBMC, Redfish, optional FusionDirector
Security: TPM 2.0, TCM, secure boot
OS: FusionOS, Windows, Linux, VMware
Oceanic Storage, Trusted Security, Efficient Power, and Intelligent O&M

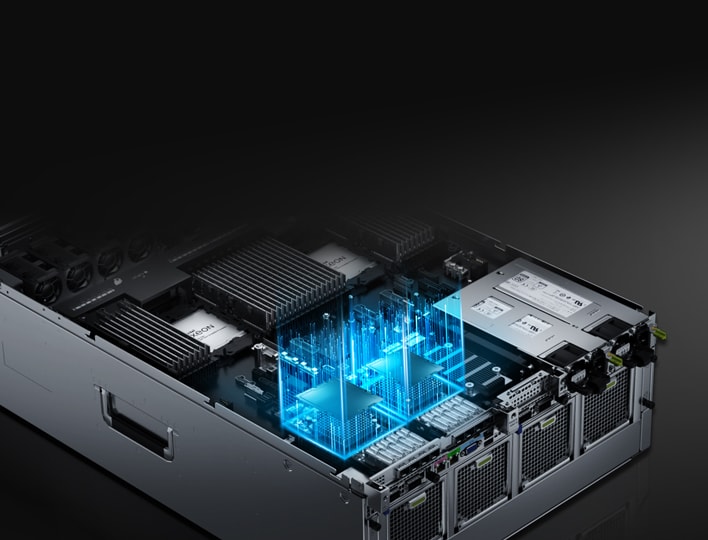

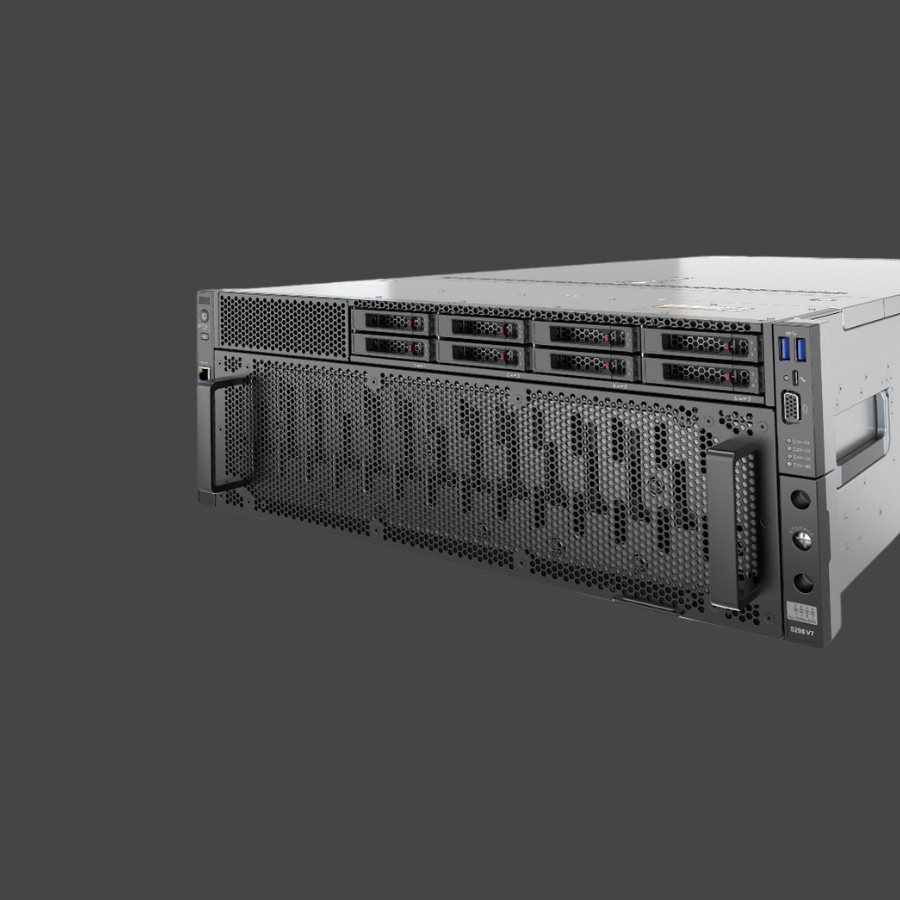

FusionServer 5298 V7 is a versatile new-generation 4U 2-socket rack server tailor-made to meet the diverse needs of industries such as the Internet, telecoms, finance, and government enterprises. With its broad range of applications, the 5298 V7 excels in distributed storage as well as warm and cold storage for big data, backup, and archiving.
Boasting massive storage capacity, low power consumption, solid reliability, streamlined management, and effortless deployment, the 5298 V7 sets a new benchmark for server excellence.
Oceanic Storage

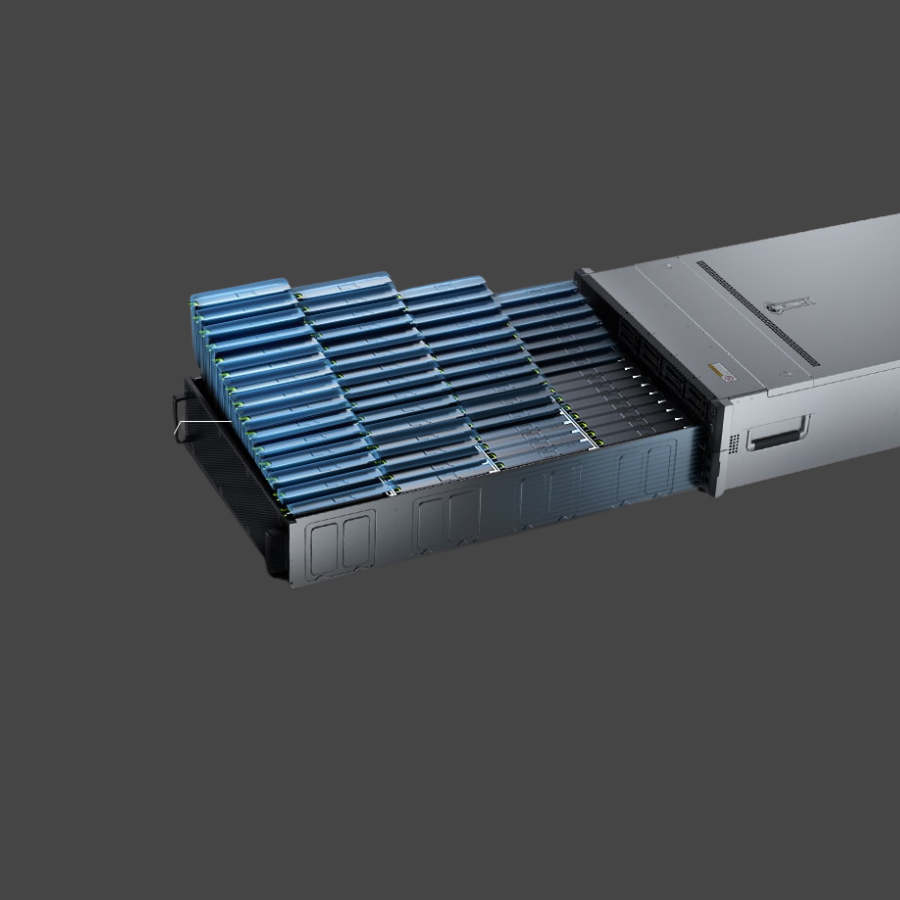

- Unrivaled storage capacity: up to 60 x 3.5" SAS/SATA drives, reducing TCO by over 30%

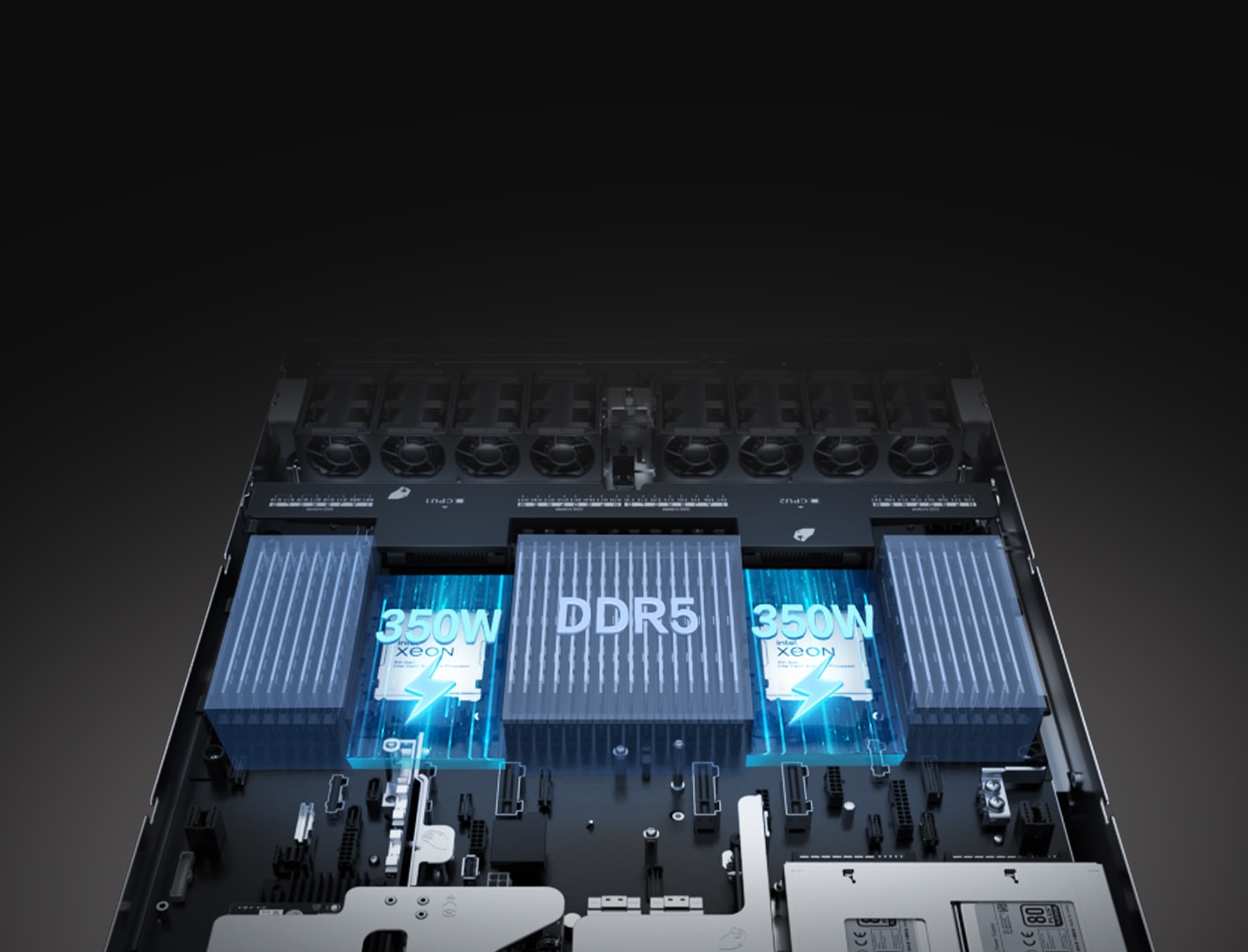

- Exceptional computing: 4th/5th Gen Intel® Xeon® Scalable processors with up to 385 W TDP and support for 32 x DDR5 DIMMs
- Flexible expansion: up to 6 x PCIe expansion slots
Trusted Security
- Advanced Extended Volume Air Cooling (EVAC): reliable cooling with enhanced temperature adaptability, boasting a 50% increase in individual heat sink
- Industry-exclusive memory fault self-healing: stable system running with a remarkable 66% reduction in system crash rates
- Root of Trust (RoT)-based secure boot: security embedded at every level for comprehensive protection
Efficient Power
- Unique algorithm for the lowest power consumption of fans and CPUs: up to 8% higher energy efficiency compared to the industry standard
- Three core technologies: tailored to elevate power and efficiency, boasting 12.5% lower power loss compared to industry norms and leading the industry in power conversion rates
- Intelligent service sensing: dynamic adjustment of CPU frequencies based on actual business loads, optimizing energy consumption
Intelligent O&M
- Seamless version updates: automated updates without any manual intervention, increasing update efficiency by 20 times
- Tool-driven deployment: 75% tool integration for streamlined deployment processes, boosting deployment efficiency by 10 times
- Unified server management: effortless management of servers from various vendors, achieving automatic asset identification, real-time tracking, and 100% inventory accuracy
.jpg)
VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.
Tel: 024 7305 6666
Tel: 028 7308 6666
️🛒https://vdoecommerce.com/may-chu-xfusion-cat.792
☎️ 1900 0366
General
Technical Specifications
• Form Factor:
4U rack server
• Processor:
2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385W TDP per processor
• Chipset:
Emmitsburg PCH
• Memory:
32 x DDR5 DIMMs, with up to 5600 MT/s speed
• Local Storage:
Various drive configurations with hot-swappable capability:
• 10 x 2.5″ SAS/SATA drives*
• 60 x 3.5″ SAS/SATA drives
• 8 x NVMe SSDs
• Dual M.2 SSDs
Technical Specs
• RAID:
• RAID 0, 1, 10, 1E, 5, 50, 6, or 60
• Supercapacitors for cache data protection from power failures
• RAID level migration, drive roaming, self-diagnosis, and remote web settings
• Network:
2 x FlexIO slots dedicated for 2 x OCP 3.0 NICs, allowing for on-demand selection and hot swap
• PCIe Expansion:
Up to 6 x PCIe expansion slots, including:
• 1 dedicated slot for the RAID controller card
• 2 x FlexIO expansion slots dedicated for OCP 3.0 NICs
• Support for PCIe 5.0
• Fan Module:
• Computing area: 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
• Storage area: 4 x hot-swappable counter-rotating fan modules in N+1 redundancy
• Power Supply (PSU):
1500 W / 2000 W / 3000 W Platinum / Titanium hot-swappable PSUs in 1+1 redundancy
Connectivity
• Management:
The Intelligent Baseboard Management Controller (iBMC) chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0
• Provides a remote management user interface based on HTML5/VNC KVM
• Supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless management, and remote control, simplifying management complexity
• Optional FusionDirector management software offers five intelligent management features for intelligent, automated, visualized, and refined management throughout the lifecycle
• Operating System (OS):
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. For more, click here
• Security:
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, Trusted Cryptography Module (TCM), security bezel, secure boot, and chassis intrusion detection
• Operating Temperature:
5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2
• Certification:
CE, UL, CCC, FCC, VCCI, and RoHS
• Installation Suite:
L-shaped and adjustable guide rails
• Dimensions (H x W x D):
175 mm x 447 mm x 850 mm (6.89 in. x 17.60 in. x 33.46 in.)
