FusionServer G8600 V7
Thêm vào Yêu thíchForm factor: Máy chủ AI 8U
CPU: 2 × Intel Xeon Scalable Gen 4/5 (TDP 385 W)
Memory: 32 DIMMs, tối đa 256 GB/DIMM, 5600 MT/s
GPU: 8 GPU modules
Storage: 8 × 2.5″ SAS/SATA, 8 × NVMe SSD, 2 × M.2 SSD
PCIe: 13 khe (12 chuẩn + 1 OCP 3.0)
Nguồn: PSU Titanium/Platinum hot-swap, hỗ trợ N+N redundancy
Quản lý: iBMC + FusionDirector, hỗ trợ Redfish/SNMP/IPMI
Ứng dụng: AI training, HPC, phân tích dữ liệu/hình ảnh
New-Generation Flagship AI Server
• FusionServer G8600 V7 (G8600 V7) is a new-generation flagship AI server. It supports 8 x GPU modules, 12 x standard PCIe cards, and 1 x OCP NICs, and provides ultra-large capacity or ultra-fast storage through 8 x 2.5" drives and 8 x NVMe SSDs.
• Featuring flagship computing power, ultimate energy efficiency and reliability, and easy O&M, it is used for high-performance scenarios such as training, scientific computing, and image and data analysis.
.jpg)

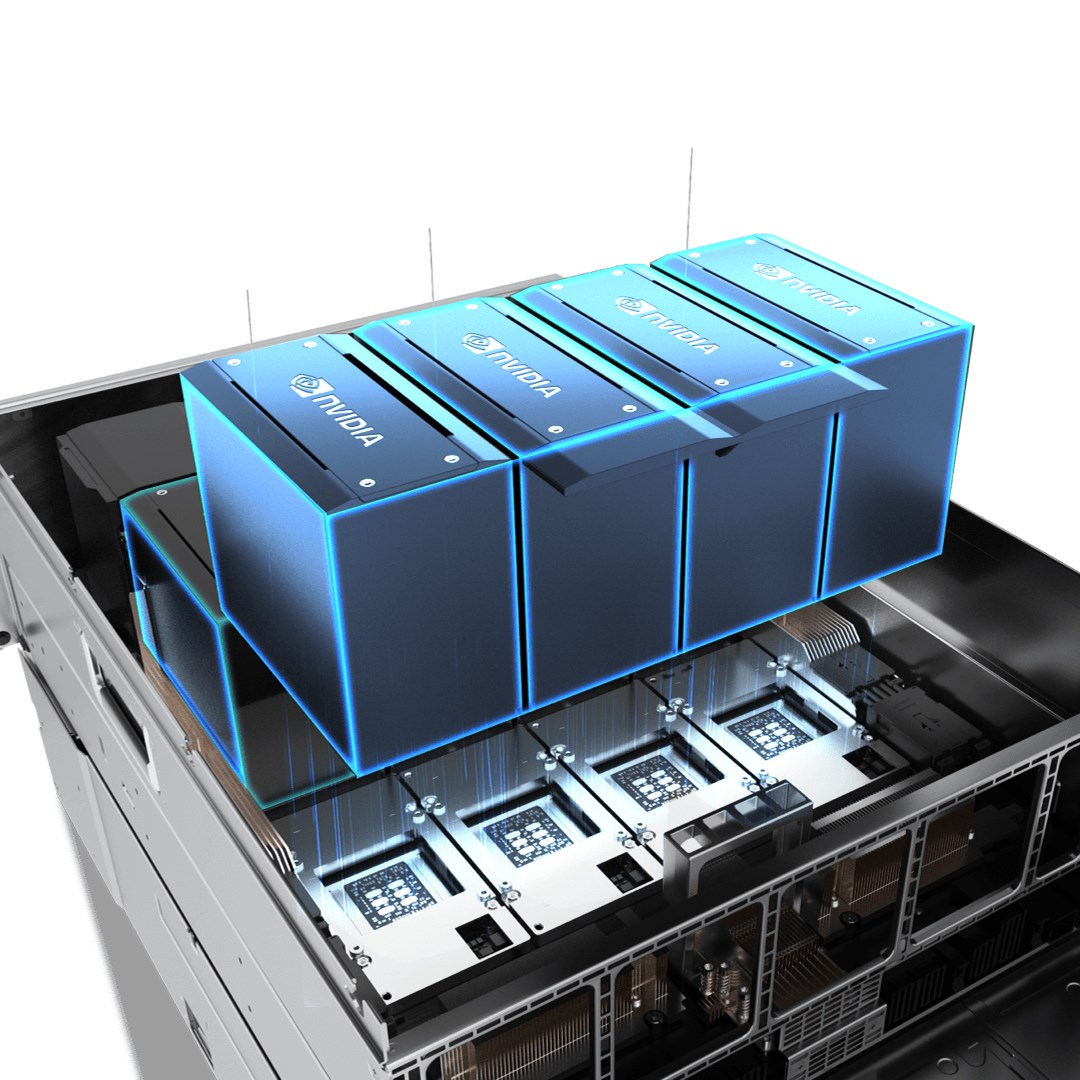

Flagship Computing Power
Superior Performance
8 x GPU modules with the industry's leading computing power
.png)
Superior Flexibility
Flexible topology: compatible with NVIDIA's high-performance and balanced topologies
Leading architecture design: Retimer-free PCIe 5.0 devices and cable-free chassis
.png)
Unmatched Energy Efficiency
Highly-efficient Heat Dissipation
Unique MPC algorithm combined with GPUs reduces fan power consumption by 1.1%
xFusion 8080++ fans improve heat dissipation capability by 20% to 30% and energy efficiency by 16%

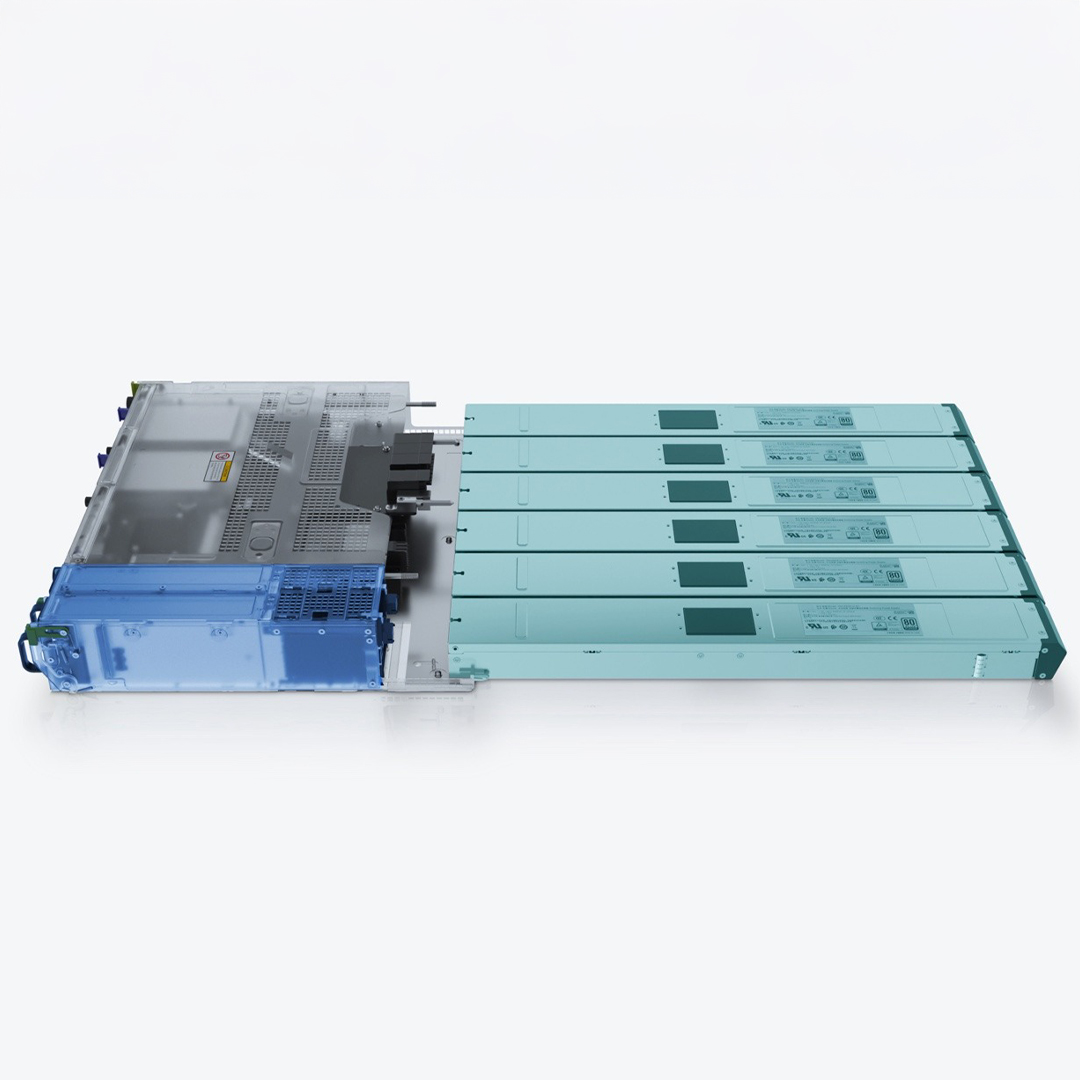

Highly-efficient Power Supply
xFusion-developed Titanium PSUs have high energy efficiency, saving up to 200 W per server
Separation of Different PSUs
54 V PSUs are separated from 12 V PSUs, eliminating the power conversion process, saving up to 76 W per server
Optimal Reliability
Highly-reliable Power Supply Architecture
Dual-bus 54 V PSUs, with fewer PSUs and more redundancy
Modular and Easy O&M
Module replacement without removing the server from the cabinet,
reducing maintenance time by 2.5 times
Fan and PSU Redundancy
Fans in N+1 redundancy
PSUs in N+M redundancy (54 V)
PSUs in 1+1 redundancy (12 V)
.jpg)
VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.
Tel: 024 7305 6666
Tel: 028 7308 6666
️🛒https://vdoecommerce.com/may-chu-xfusion-cat.792
☎️ 1900 0366
General
Form Factor
8U AI server
Processor
2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor
Chipset
Emmitsburg PCH
Memory
32 x DIMMs, up to 256 GB per DIMM, up to 5600 MT/s
Local Storage
Hot-swappable drive configurations:
• Up to 8 x 2.5″ SAS/SATA drives
• Up to 8 x NVMe SSDs
• 2 x M.2 SSDs
RAID
RAID 0, 1, 10, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
GPU Module
8 x GPU modules
Network
1 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap
PCIe Expansion
Up to 13 x PCIe slots, including 12 x standard PCIe slots, 1 x OCP 3.0 slots
Fan Module
GPU: 10 x 54 V fan modules in N+1 redundancy; CPU: 5 x 12 V fan modules in N+N redundancy
PSU
• 54V
6 x 3000 W Titanium hot-swappable PSUs，Cabinet-level N+N redundancy backup with 2+2, 3+1, 3+3, 4+2, and 5+1 configuration based on the load is supported.
• 12V
2 x 3000 W Titanium or 2000 W Titanium/Platinum hot-swappable PSUs in 1+1 redundancy
Technical Specs
Management
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.
OS
Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and others . For more, click here
Connectivity
Security
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and secure boot
Operating Temperature
5°C to 35°C (41°F to 95°F)
Certification
CQC, CE, and RoHS
Installation Suite
L-shaped guide rails
Dimensions (H x W x D)
352.8mm×447mm×925mm (13.89 in. x 17.60 in. x 36.42 in.)
