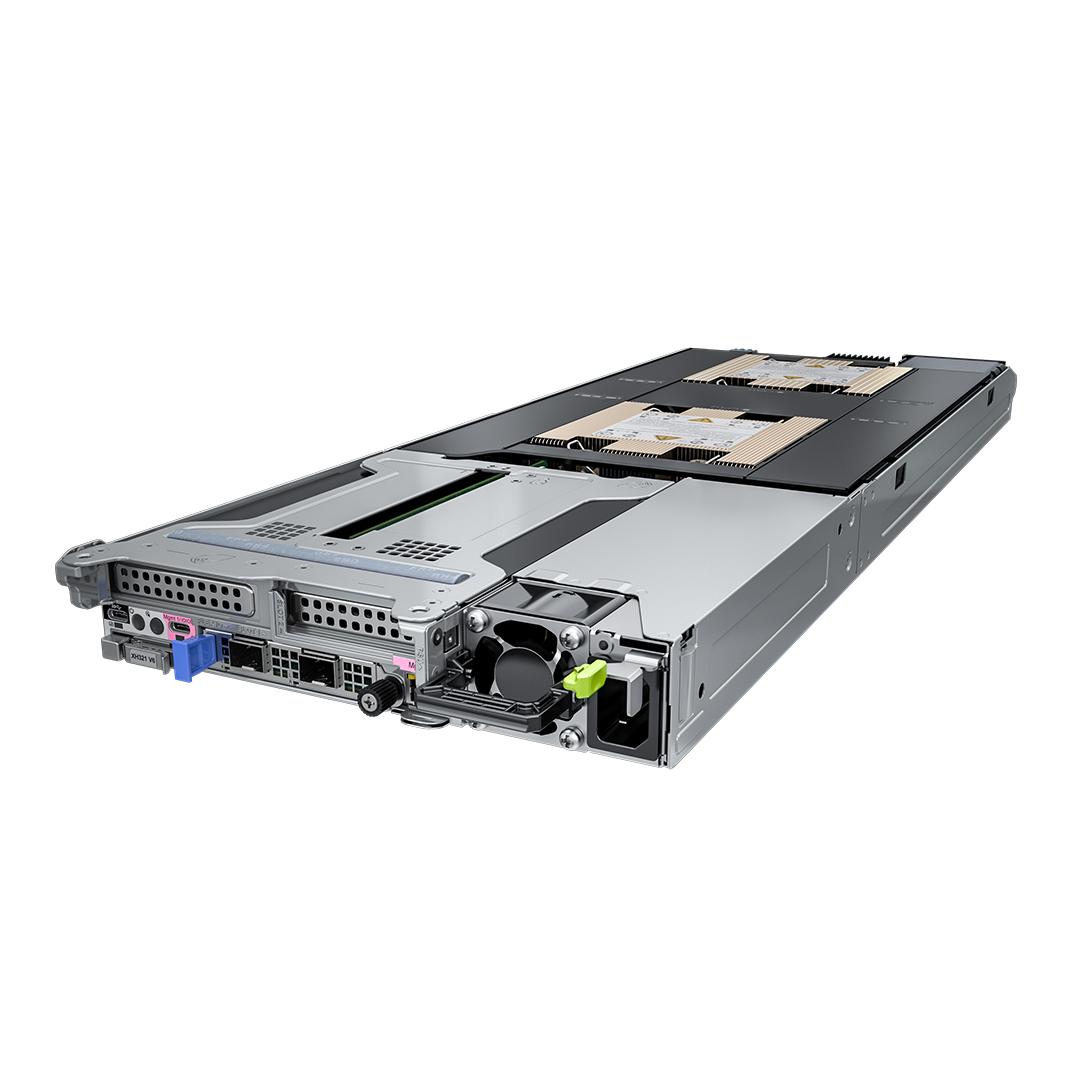

FusionServer XH321 V6

Thêm vào Yêu thích

xFusion High Density Servers SKU: SV000004

Form: 1U half-width, 2-socket
CPU: 1/2× Intel® Xeon® Scalable Gen3 (6300/8300, 270W)
Memory: 16 DDR4 DIMMs, max 2TB, 3200 MT/s
Storage: Tối đa 6× 2.5" SAS/SATA/SSD/NVMe + 2× M.2 SATA SSD
RAID: 0,1,5,6,10,50,60 (hỗ trợ bảo vệ điện)
PCIe: 2× PCIe 4.0 x16 + 1 OCP slot
Management: BMC (Redfish, SNMP, IPMI 2.0), remote KVM, FusionDirector
Security: TPM 2.0, secure boot, password, panel bảo mật
OS: Windows Server, RHEL, SUSE, CentOS, XenServer, VMware ESXi
Kích thước: 40.7 × 218.7 × 632 mm

Thêm vào So sánh

FusionServer XH321 V6 is a new-generation 1 U half-width two-socket server node. It is innovatively designed to overcome power constraints and improve system storage density. It features powerful computing capabilities, ultra-high storage density, and easy management and maintenance.

Excellent Computing Performance

Supports up to 2 third-generationIntel® Xeon® Scalable processors with TDP per processor up to 270 W

Supports eight memory channels, improving memory bandwidth by 45%.

Supports all-NVMe SSD acceleration and 2+4 balancing design to eliminate I/O bottlenecks.

Adaptation and Flexible Deployment

InfiniBand HDR 200 high-speed network interconnection

Hot-swappable 2 x M.2 SSDs and high-speed and reliable OS boot disks

Extreme Heat Dissipation

Drives do not have backplanes and counter-rotating fans, improving air intake by 35%

VC phase-change temperature equalization technology, improving thermal conductivity by 15 times

Built-in power supply design, supporting 110 mm heat sink

-----------

VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.

Tel: 024 7305 6666

Tel: 028 7308 6666

📩 [email protected]

️🛒https://vdoecommerce.com/may-chu-xfusion-cat.792

☎️ 1900 0366

General

Model

FusionServer XH321 V6

Form

1U half-width 2-socket server node

Processor

1/2 third-generation Intel^® Xeon^® Scalable processor (6300/8300 series) with 270 W TDP per processor

Memory Slots

16 DDR4 DIMM slots, up to 3200 MT/s, up to 2 TB memory capacity (configured with 128 GB memory)

Local Storage

A maximum of six 2.5-inch SAS/SATA/SSD/NVMe drives, and NVMe 2+4 balance

Up to two M.2 2280 or 2242 SATA SSDs

Hybrid configuration of different drive types

RAID

RAID 0, 1, 5, 6, 10, 50, 60, and supercapacitor power failure protection

RAID 0 and 1 for M.2 SSDs

PCIe

2 standard PCIe 4.0×16 half-height half-length expansion slots

OCP

1 OCP expansion slot

Technical Specs

Management

· The BMC chip integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

· The BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. CD-free deployment and agentless features simplify management.

· Aggregates four compute nodes to any node management interface, simplifying management.

· FusionDirector management software is optional. It provides advanced management features, such as stateless computing, batch OS deployment, and automatic firmware upgrade, implementing intelligent and automatic management throughout the lifecycle.

Connectivity

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi

Security Features

Such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F)

Certifications

CE、UL、FCC、CCC、RoHS etc

Dimensions (H x W x D)

40.7 mm x 218.7 mm x 632 mm (1.60 in. x 8.61 in. x 24.88 in.)
