FusionServer 2488H V7
Thêm vào Yêu thíchForm Factor: 2U rack server
CPU: 2–4 × Intel® Xeon® Scalable (4th Gen, up to 350 W)
Chipset: Emmitsburg PCH
Memory: 64 DDR5 DIMMs
Storage: Up to 25 × 2.5" SAS/SATA, 8 × NVMe SSDs, 2 × M.2 SSDs
RAID: 0/1/5/6/10/50/60, cache protection, migration, roaming
Networking: OCP 3.0 NIC, hot-swappable, multiple expansions
Expansion: Up to 10 PCIe slots (1 FlexIO for OCP, 9 standard)
Cooling: 6 hot-swappable fans, N+1 redundancy
Power: 900W–3000W Platinum/Titanium PSUs, 1+1 redundancy
Management: iBMC with Redfish, HTML5/VNC KVM, optional FusionDirector
Security: TPM 2.0, secure boot, intrusion detection, security bezel
OS: FusionOS, Windows Server, Linux, VMware, Oracle, Ubuntu, openEuler
High-Density Computing Power, High Reliability and Security, Efficient Energy Saving, and Intelligent O&M
2U 4-Socket Rack Server
• FusionServer 2488H V7 (2488H V7) is a 2U 4-socket mission critical rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom service applications.
• It is also ideal for various applications, such as databases, virtualization, and in-memory computing.
• 2488H V7 features high-performance computing, large-capacity storage, low power consumption, high reliability, easy management and deployment, and high virtualization application density.
High-Density Computing Power

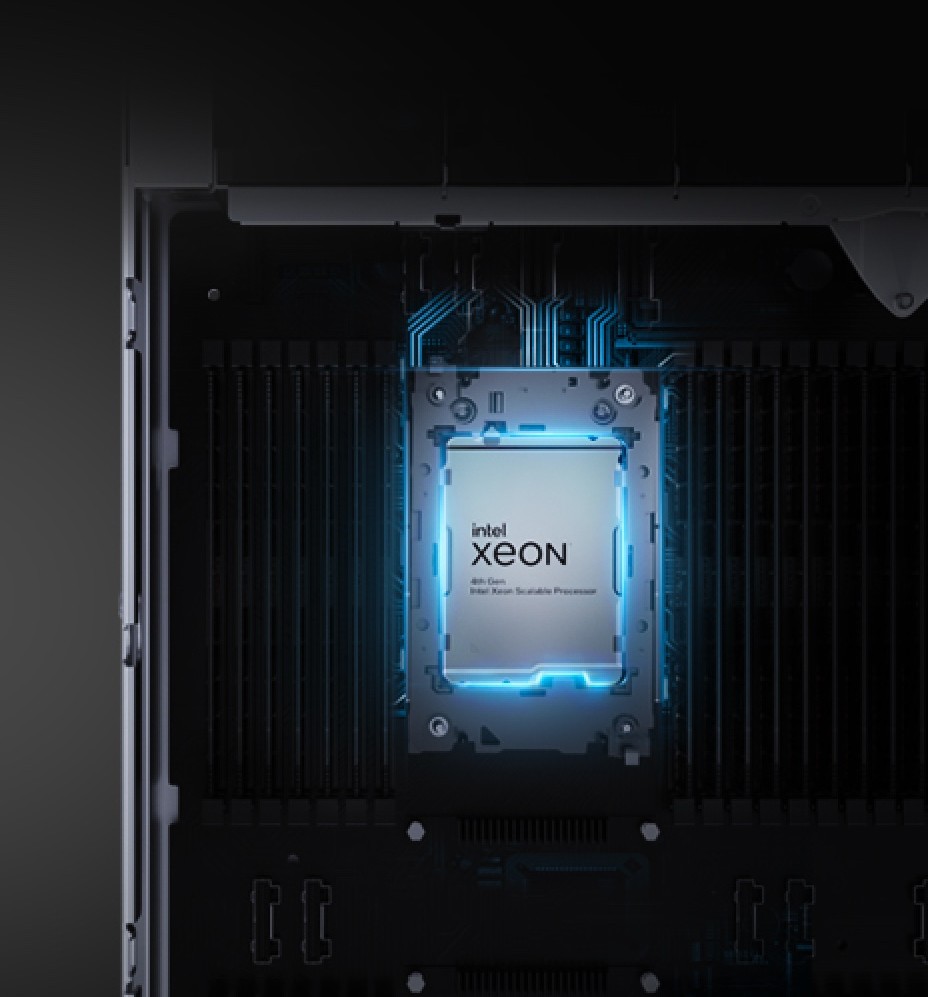

Unparalleled Computing Power
4 x 350 W CPUs and 64 x DDR5 DIMMs in 2U space secure an industry-leading position

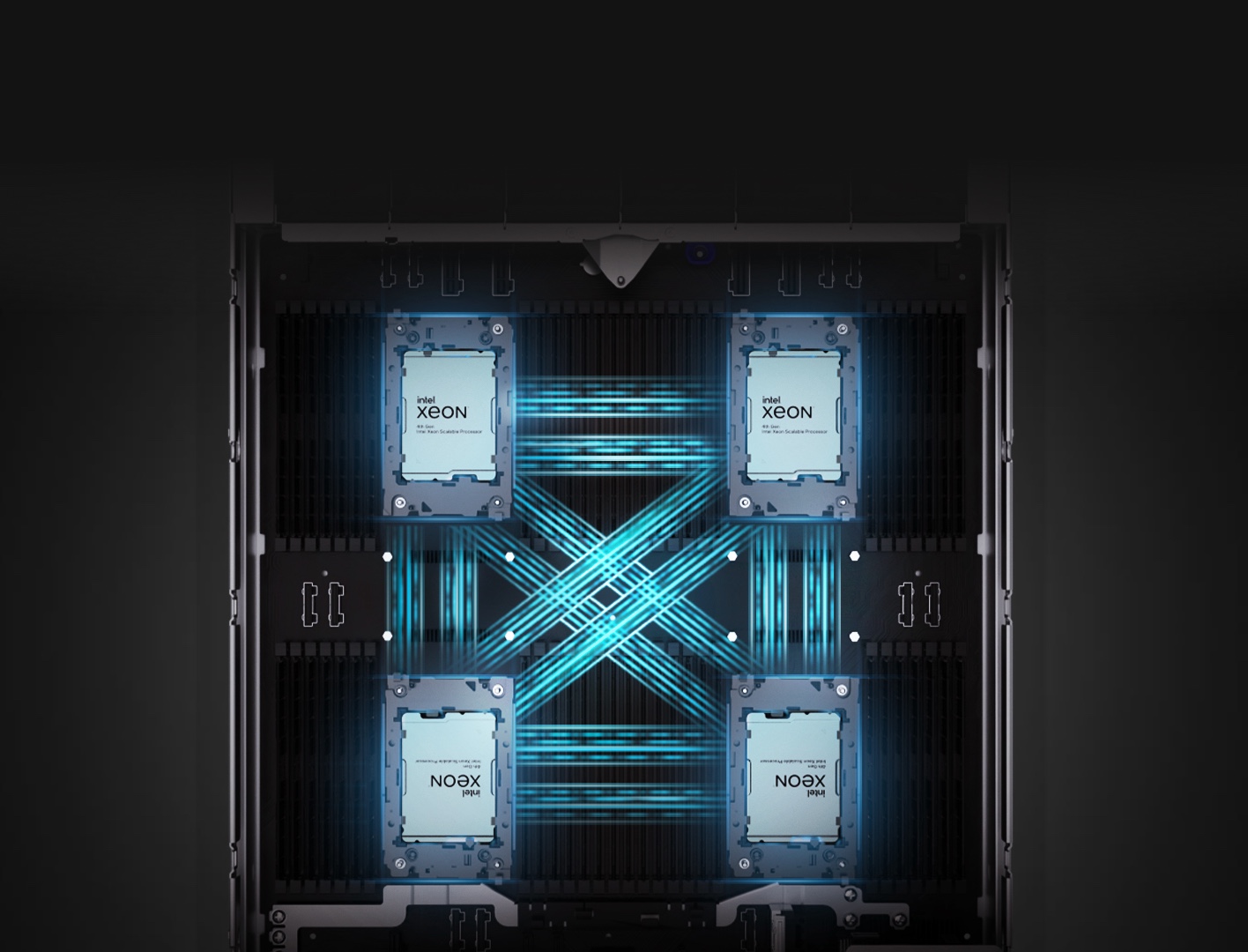

High-Speed Interconnection
50% higher UPI speed for interconnection between CPUs provides better performance; supports PCIe 5.0 and 400 Gbit/s NIC interconnection
Flexible Configuration
Supports PCIe 5.0 and multiple standard PCIe slots
High Reliability and Security

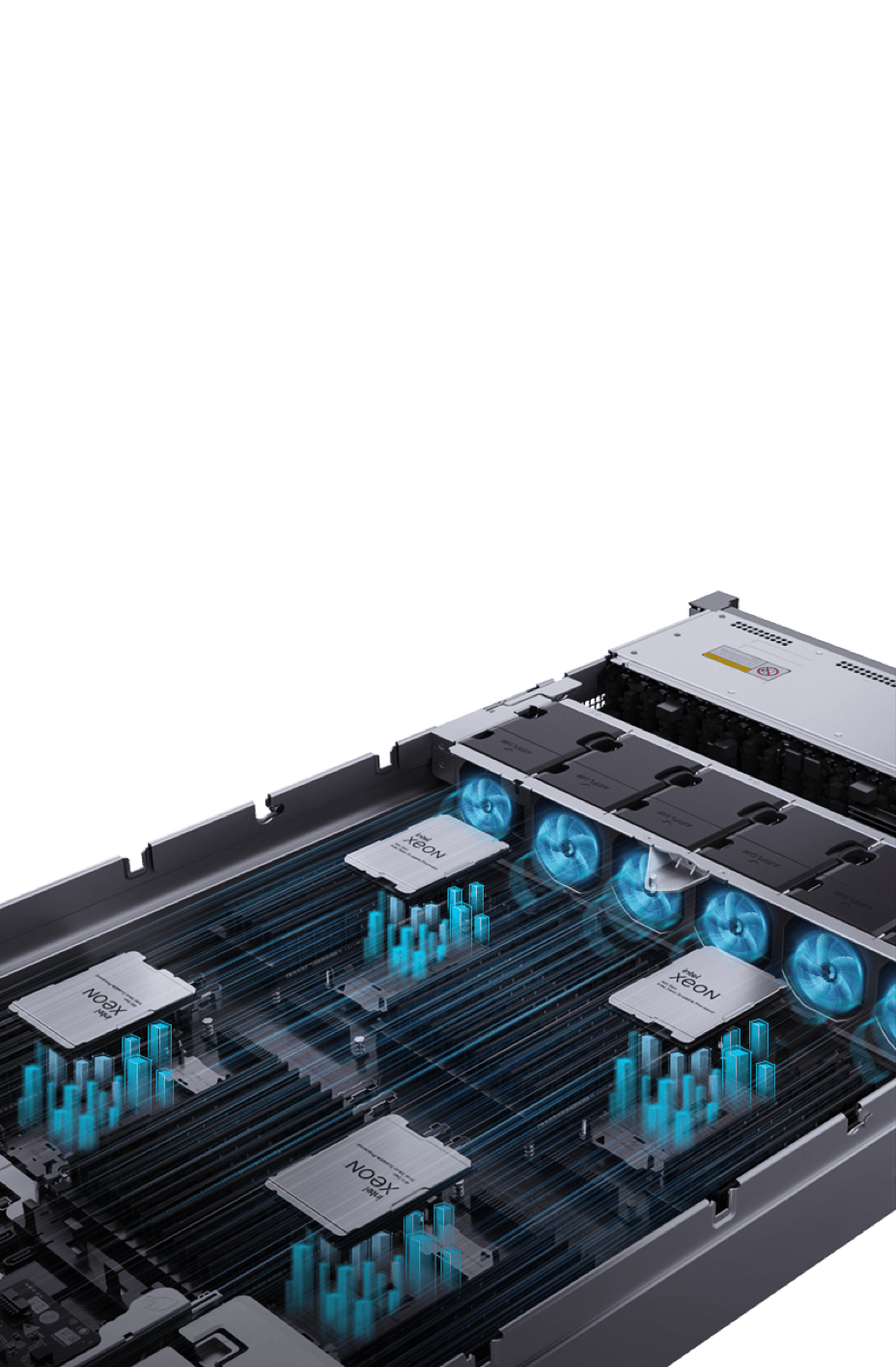

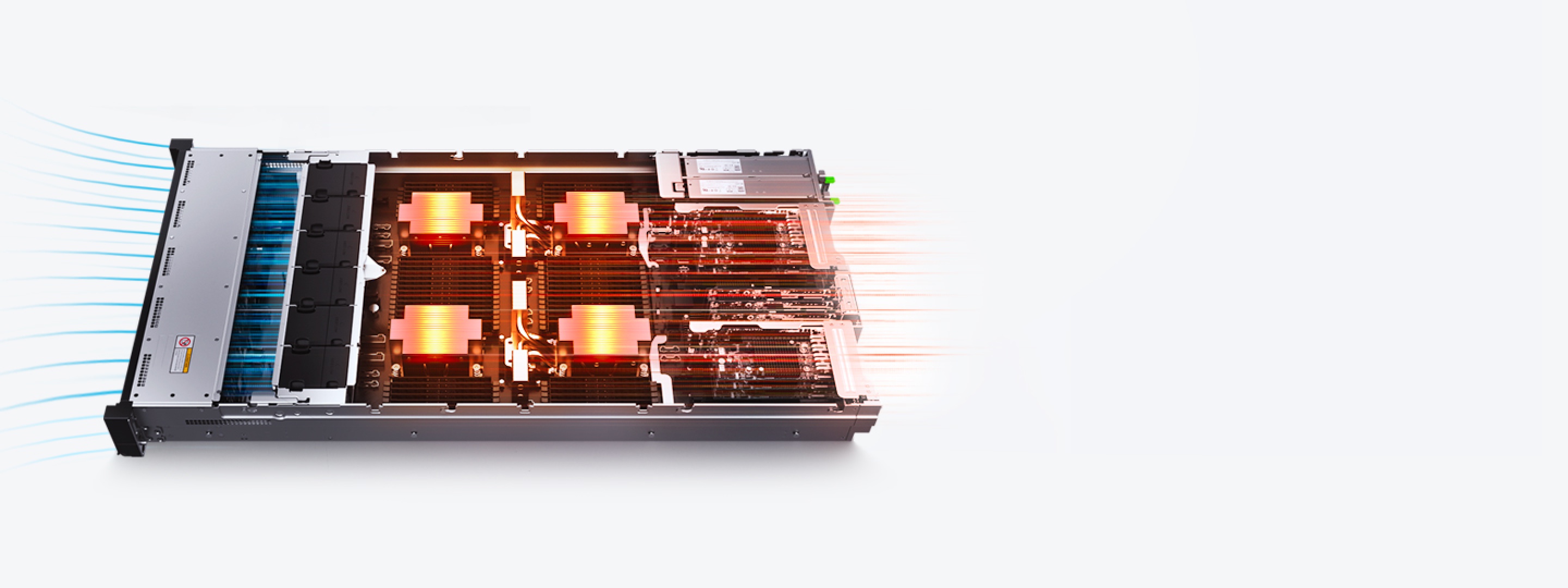

50% Better Heat Dissipation Capability Than a Single Heat Sink
Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation
66% Less System Downtime
Unique AI memory fault self-healing ensures stable system running
Efficient Energy Saving
Saving Energy by up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs
Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average
Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load
Intelligent O&M
VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.
Tel: 024 7305 6666
Tel: 028 7308 6666
️🛒https://vdoecommerce.com/may-chu-xfusion-cat.792
☎️ 1900 0366
General
Form Factor
2U rack server
Processor
2 or 4 x 4th Gen Intel® Xeon® Scalable processors with TDP up to 350 W per processor
Chipset
Emmitsburg PCH
Memory
64 x DDR5 DIMMs
Local Storage
Hot-swappable drives configurations:
• 8 x front 2.5″ SAS/SATA drives
• 25 x front 2.5″ SAS/SATA drives
• 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs
Flash storage: 2 x M.2 SSDs, supporting hardware RAID
RAID
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network
Multiple network expansion capabilities
1 x OCP 3.0 NIC, supporting hot swap
Technical Specs
PCIe Expansion
Up to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots
Fan Module
6 x hot-swappable counter-rotating fans in N+1 redundancy
PSU
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management

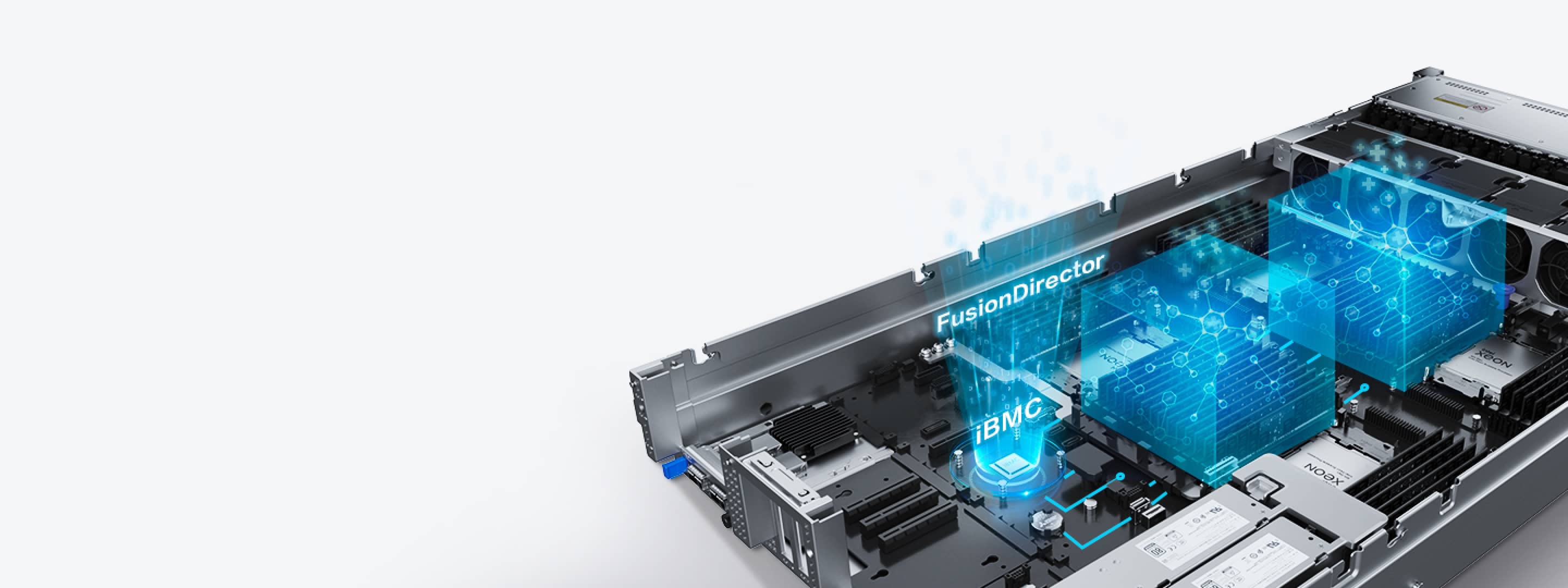

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.
Connectivity
OS
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler. For more, click here
Security
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
Operating Temperature
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4
Certification
CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
Chassis with 2.5″ drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.)
