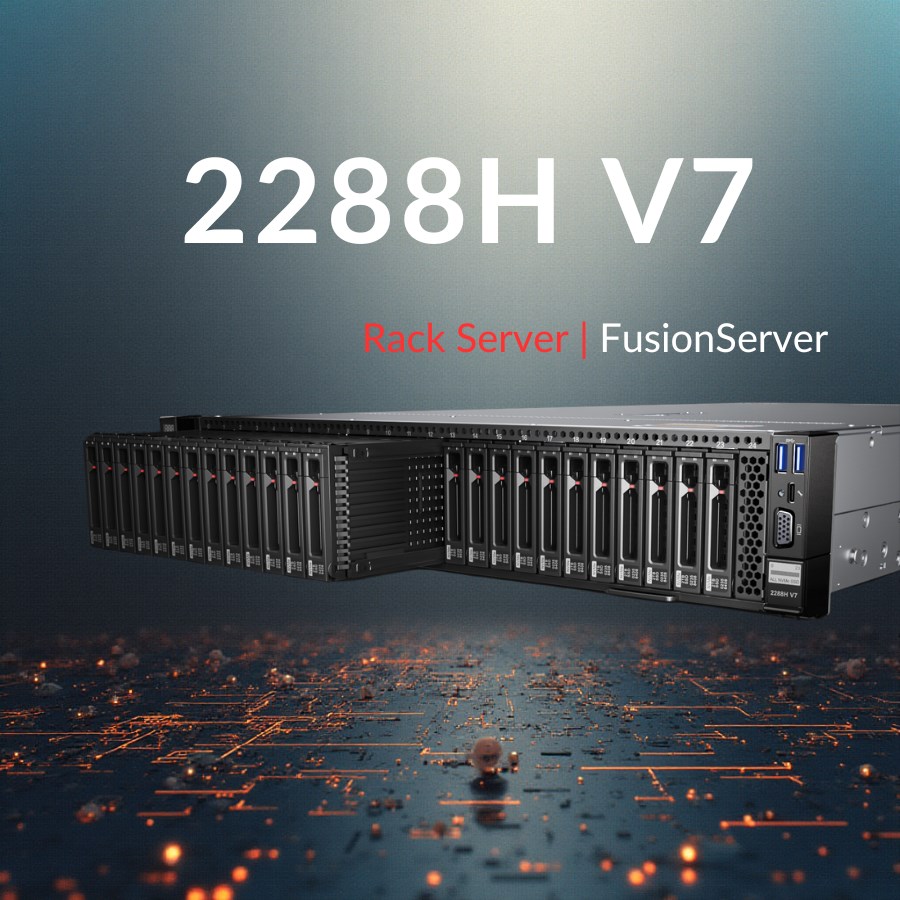

FusionServer 2288H V7

Thêm vào Yêu thích

xFusion Rack Servers SKU: SV000011

Dual 4th/5th Gen Intel® Xeon® CPUs (up to 385 W each)
Up to 48 DDR5 DIMMs, 5600 MT/s with CXL support
Flexible storage: up to 45 x 2.5" drives or 28 NVMe SSDs
Supports RAID 0/1/5/6/10/50/60 with advanced features
Dual OCP 3.0 NICs, up to 19 PCIe slots (8 PCIe 5.0)
GPU-ready: 4 dual-width or 14 single-width cards
Hot-swappable fans and PSUs (900 W–3000 W)
iBMC management with Redfish, IPMI, optional FusionDirector
OS: Windows, Linux, VMware ESXi, FusionOS, and more

Thêm vào So sánh

FusionServer 2288H V7 2288H V7 is a new generation 2U 2 socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management

FusionServer 2288H V7 Rack Server - Robust Performance, High Reliability and Security,

Efficient Energy Saving, and Intelligent O&M

FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, accelerated computing inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads. The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Robust Performance

4th or 5th Gen Intel® Xeon® Scalable processors with 385 W TDP per processor, and 32 x DDR5 DIMMs, providing 50% better overall performance

- PCIe 5.0 protocol and 17 x standard PCIe slots ensure flexible configuration, allowing 100% higher PCIe bandwidth for high-speed interconnection

- High-speed flash memory and diverse configurations: (1) 28 x NVMe U.2 SSDs, high-speed flash for high performance; (2) 45 x SAS/SATA SSDs, more slots, more cost-effective

High Reliability and Security

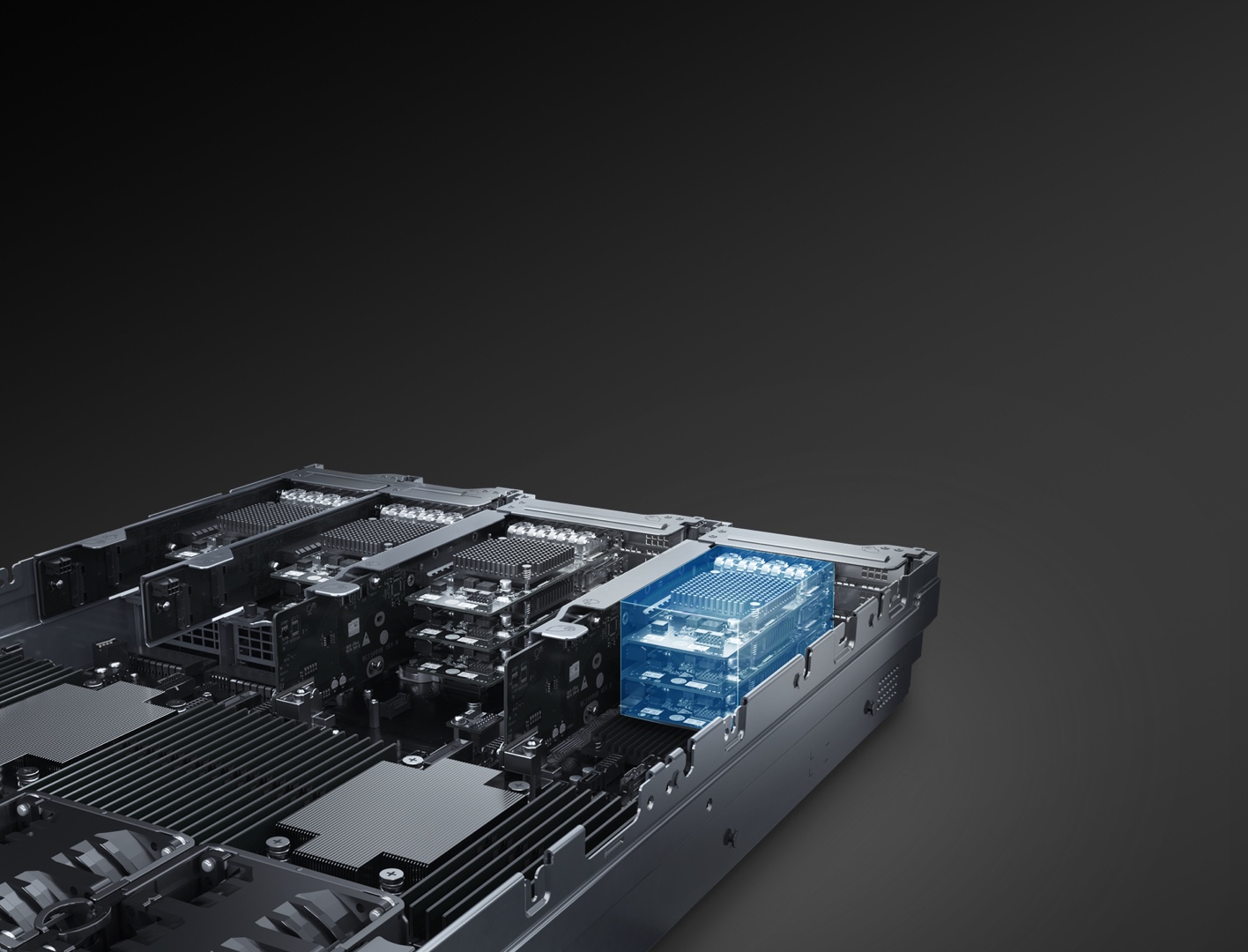

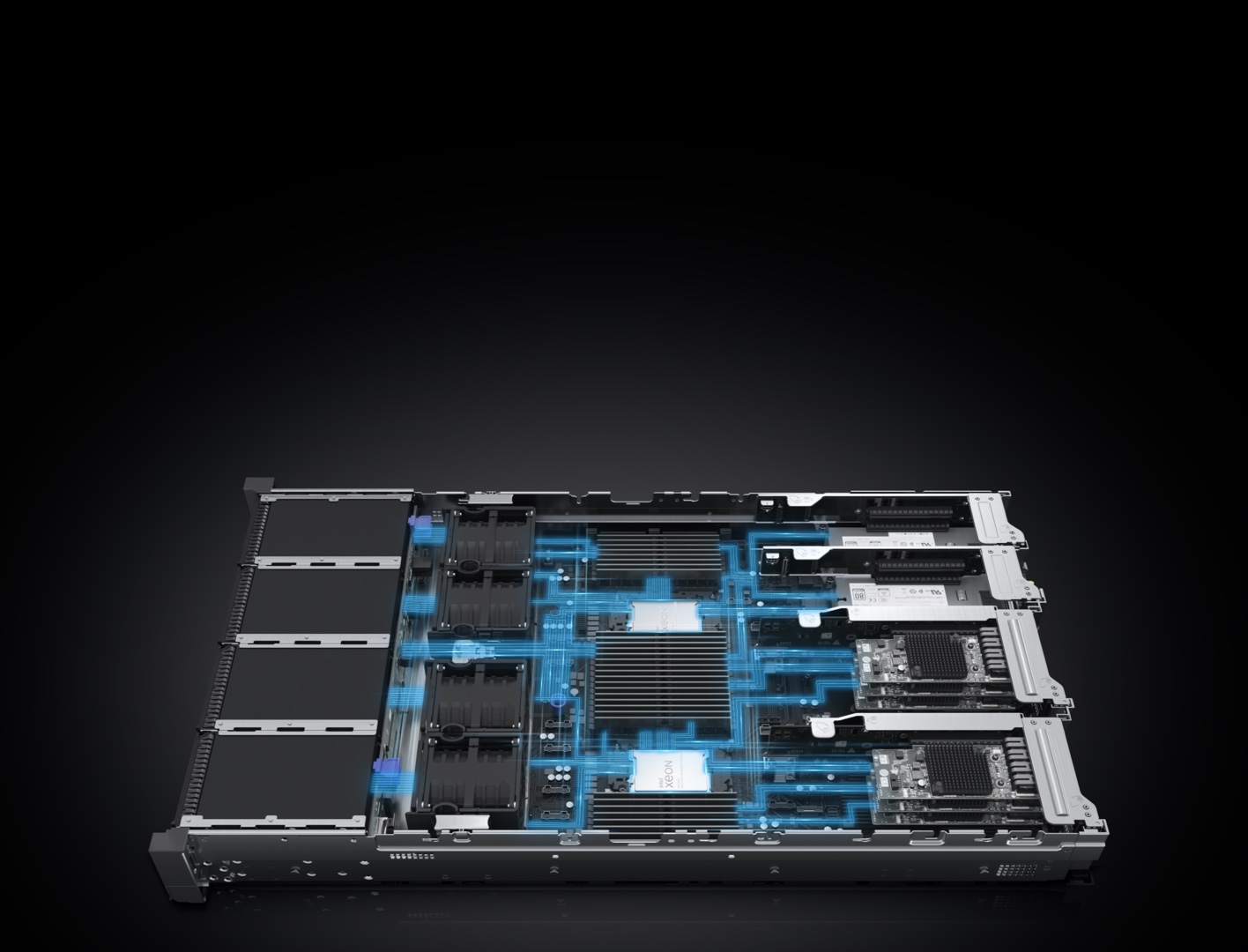

- Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation, providing 50% better heat dissipation capability than a single heat sink

- Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66%

- RoT-based secure boot ensures security everywhere

Efficient Energy Saving

Saving Energy by up to 8% Compared with the Industry Average

The unique algorithm is provided for the lowest power consumption of fans and CPUs

Intelligent Service Awareness, Dynamic Load Adjustment

The CPU working frequency is dynamically adjusted based on the actual service load

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

Intelligent O&M

20x Higher Upgrade Efficiency

Automatic version push and upgrades can be completed without onsite attendance

10x Higher Deployment Efficiency

75% streamlined deployment steps are performed by tools

100% Accuracy for Asset Stocktaking

Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking

VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.

Tel: 024 7305 6666

Tel: 028 7308 6666

📩 [email protected]

️🛒https://vdoecommerce.com/may-chu-xfusion-cat.792

☎️ 1900 0366

General

Technical Specifications

• Form Factor:
2U rack server

• Processor:
1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor

• Chipset:
Emmitsburg PCH

• Memory:
32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 DIMMs supported by CXL technology; up to 48 x DIMMs*

• Local Storage:
Hot-swappable drives with the following configuration options are supported:
• 8 to 35 x 2.5″ SAS/SATA/SSD drives
• 12 to 18 x 3.5″ SAS/SATA drives
• 4 / 8 / 16 / 24 x NVMe SSDs
• Up to 45 x 2.5″ drives, or 28 x full NVMe SSDs*
• 2 x M.2 SSDs, hardware RAID, and hot swap

Technical Specs

• RAID:
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

• Network:
Expansion capability of multiple types of networks
OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported

• PCIe Expansion:
Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots*, 8 slots of which support PCIe 5.0

• GPU Card:
4 x dual-width or 14 x single-width GPU cards*

• Fan Module:
4 x hot-swappable counter-rotating fans in N+1 redundancy

• Power Supply:
900 W / 1200 W / 1500 W / 2000 W / 3000 W Platinum / Titanium hot-swappable PSUs in 1+1 redundancy

Connectivity

• Management:
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle.

• OS:
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. For more, click here

• Security:
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

• Operating Temperature:
5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4

• Certification:
CE, UL, CCC, FCC, VCCI, and RoHS

• Installation Suite:
L-shaped guide rails, adjustable guide rails, and holding rails

• Dimensions (H x W x D):
Chassis with 3.5″ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
Chassis with 2.5″ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
