FusionServer 5288 V7

Thêm vào Yêu thích

xFusion Rack Servers SKU: SV000007

Form Factor: 4U rack server
CPU: 1–2 × Intel® Xeon® Scalable (4th/5th Gen, up to 385 W)
Chipset: Emmitsburg PCH
Memory: 32 DDR5 DIMMs, up to 5600 MT/s
Storage: Up to 44 × 3.5", 4 × 2.5", 4 × NVMe, 2 × M.2 SSDs
RAID: 0/1/5/6/10/50/60, migration, roaming, cache protection
Networking: Dual OCP 3.0 NICs via FlexIO slots, hot-swap, PCIe 5.0
Expansion: Up to 10 PCIe 5.0 slots (2 FlexIO, 8 standard)
Accelerators: Up to 8 single-width GPU cards
Cooling: 6–8 hot-swappable fans, N+1 redundancy
Power: 900W–3000W Platinum/Titanium PSUs, 1+1 redundancy
Management: iBMC with Redfish, HTML5/VNC KVM, optional FusionDirector
Security: TPM 2.0, secure boot, intrusion detection, security bezel
OS: FusionOS, Windows Server, Linux, VMware, Oracle, Ubuntu, Debian, openEuler

Thêm vào So sánh

Ultra-large Storage, High Reliability and Security, Efficient Energy Saving, and Intelligent O&M

New-Generation 4U 2-Socket Rack Server

• FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.

• 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

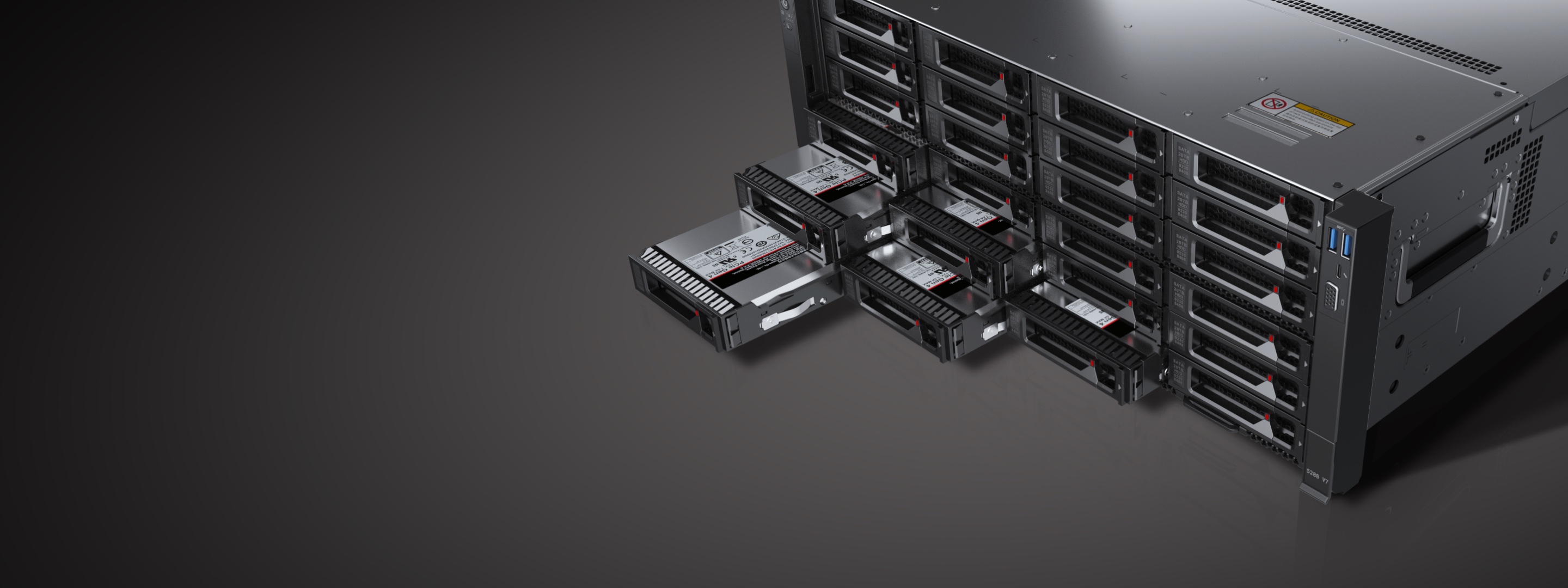

Ultra-large Storage

Ultra-large Storage

Supports 44 x 3.5" drives + 4 x NVMe U.2 SSDs

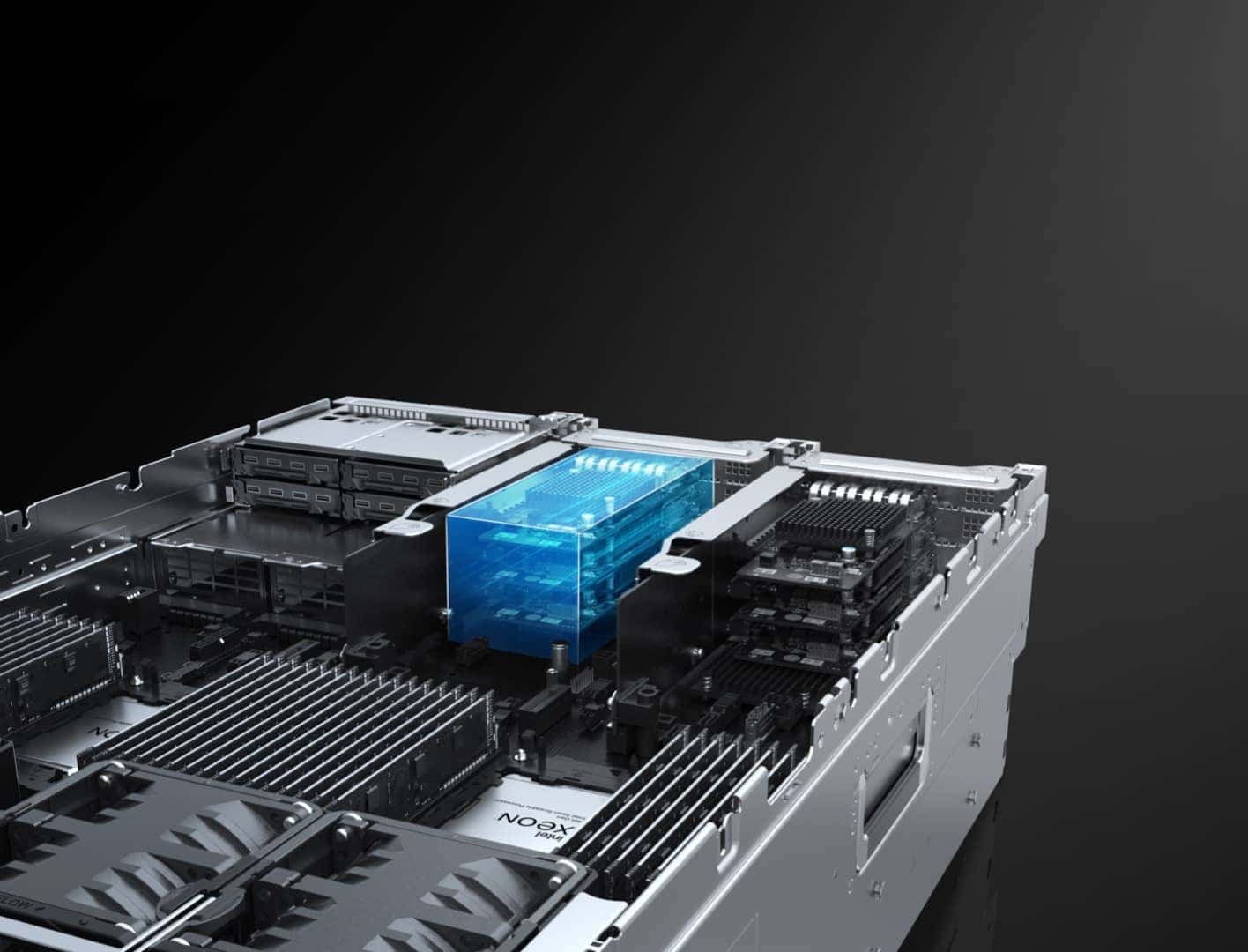

Flexible Configuration

Supports up to 10 x standard PCIe slots

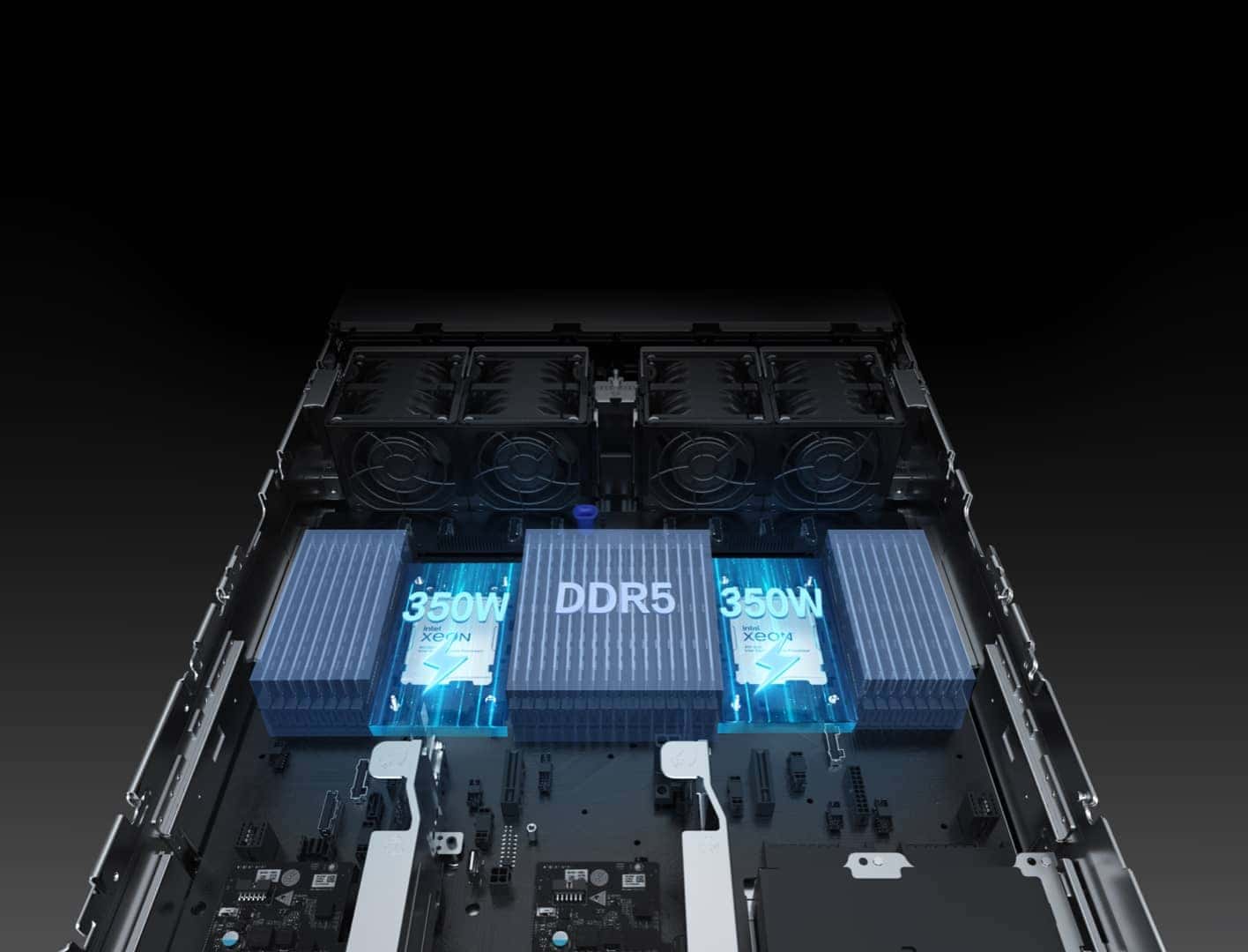

Supreme Computing Power

4th or 5th Gen Intel^® Xeon^® Scalable processors with 385 W TDP per processor, and 32 x DDR5 DIMMs

High Reliability and Security

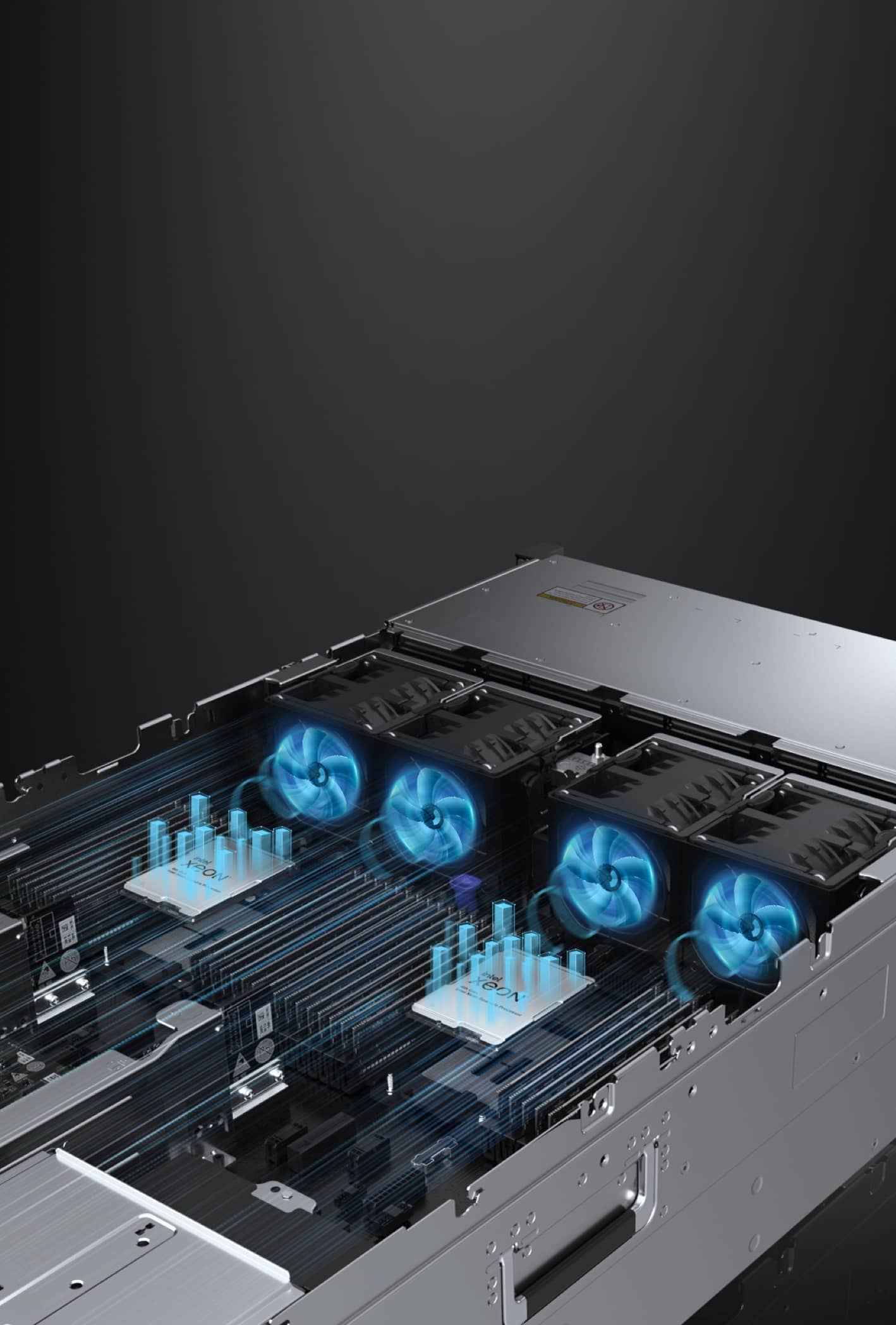

50% Better Heat Dissipation Capability Than a Single Heat Sink

Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation

66% Less System Downtime

Unique AI memory fault self-healing ensures stable system running

Efficient Energy Saving

Saving Energy by Up to 8% Compared with the Industry Average

The unique algorithm is provided for the lowest power consumption of fans and CPUs

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

Intelligent O&M

VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.

Tel: 024 7305 6666

Tel: 028 7308 6666

📩 [email protected]

️🛒https://vdoecommerce.com/may-chu-xfusion-cat.792

☎️ 1900 0366

General

Form Factor

4U rack server

Processor

1 or 2 x 4th/5th Gen Intel^® Xeon^®Scalable processors, with up to 385 W TDP per processor

Chipset

Emmitsburg PCH

Memory

32 x DDR5 DIMMs, with up to 5600 MT/s speed

Local Storage

Hot-swappable drive configurations:

• 4 x 2.5ʺ SAS/SATA drives/SSDs

• 24 to 44 x 3.5ʺ SAS/SATA drives

• 4 x NVMe SSDs

Flash storage:

• 2 x M.2 SSDs

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

Expansion capability for multiple types of networks

OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported

Technical Specs

PCIe Expansion

Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported

GPU Card

8 x single-width GPU cards*

Fan Module

6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy

Power Supply

900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

Management

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle

Connectivity

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Operating Temperature

5ºC to 35ºC (41ºF to 95ºF), Class A1/A2

Certification

CE, UL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5ʺ drives: 175 mm × 447 mm × 798 mm (6.89 in. x 17.60 in. x 31.42 in.)
