FusionServer 1288H V7
Thêm vào Yêu thíchForm Factor: 1U rack server
CPU: 1–2 x Intel® Xeon® Scalable (4th/5th Gen, up to 385 W)
Chipset: Emmitsburg PCH
Memory: 32 DDR5 DIMMs, up to 5600 MT/s
Storage: 4 x 3.5" or 8–12 x 2.5" SAS/SATA, 2 x M.2 SSDs
RAID: 0/1/5/6/10/50/60, cache protection options
Networking: 2 x OCP 3.0 NICs via FlexIO, PCIe 5.0 support
Expansion: 5 PCIe slots (2 FlexIO + 3 PCIe, 1 with PCIe 5.0)
Cooling: 8 hot-swappable fans, N+1 redundancy
Power: 900W–2000W Platinum/Titanium PSUs, 1+1 redundancy
Management: iBMC with Redfish, HTML5 KVM, FusionDirector optional
Security: TPM 2.0, secure boot, intrusion detection
OS: FusionOS, Windows, Linux, VMware
High-Density Computing Power, High Reliability and Security, Efficient Energy Saving, and Intelligent O&M
New-Generation 1U 2-Socket Rack Server
• FusionServer 1288H V7 (1288H V7) is a new-generation 1U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, high-performance computing (HPC), enterprise or telecom service applications, and other complex workloads.
• 1288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
High-Density Computing Power
High-Density Computing Power

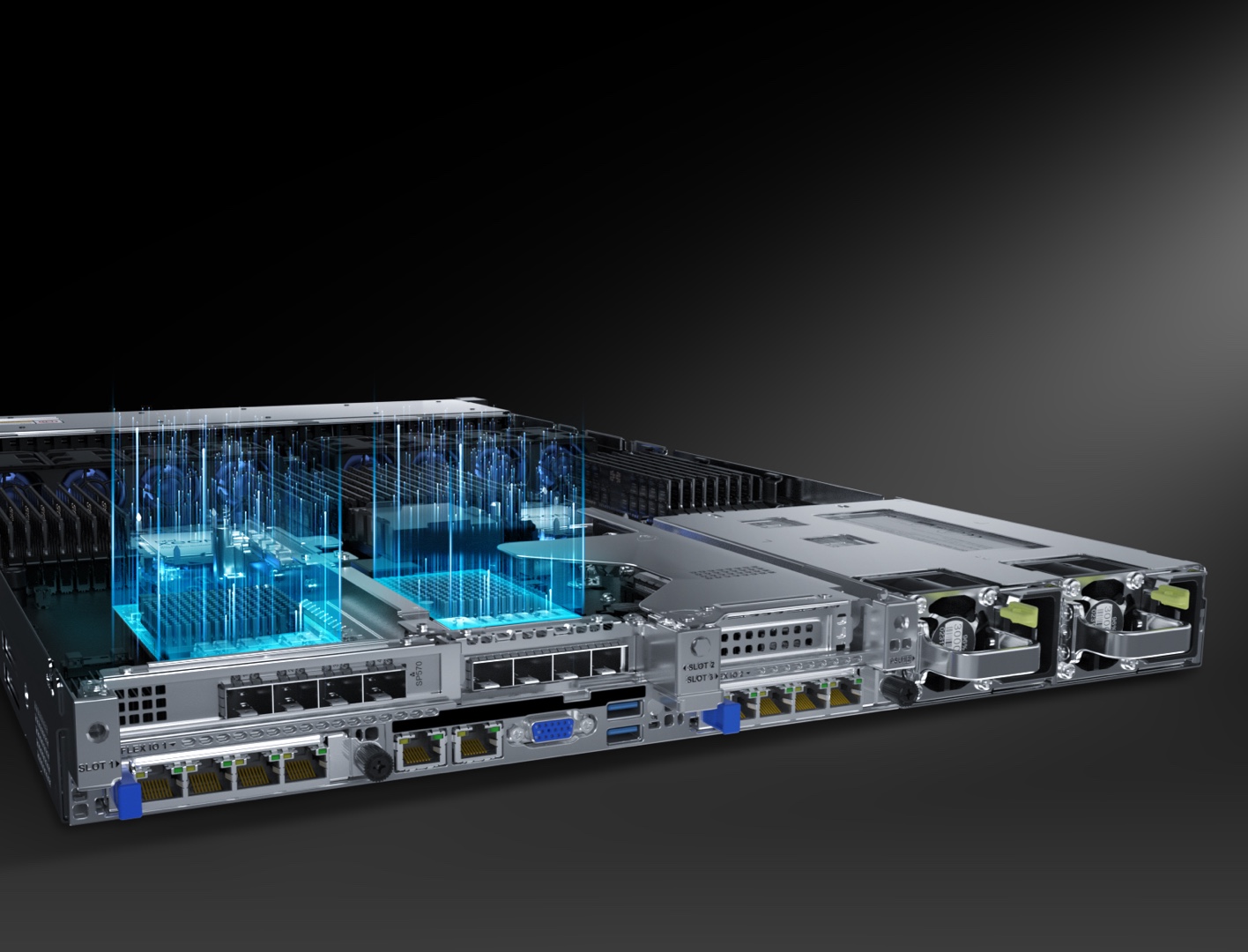

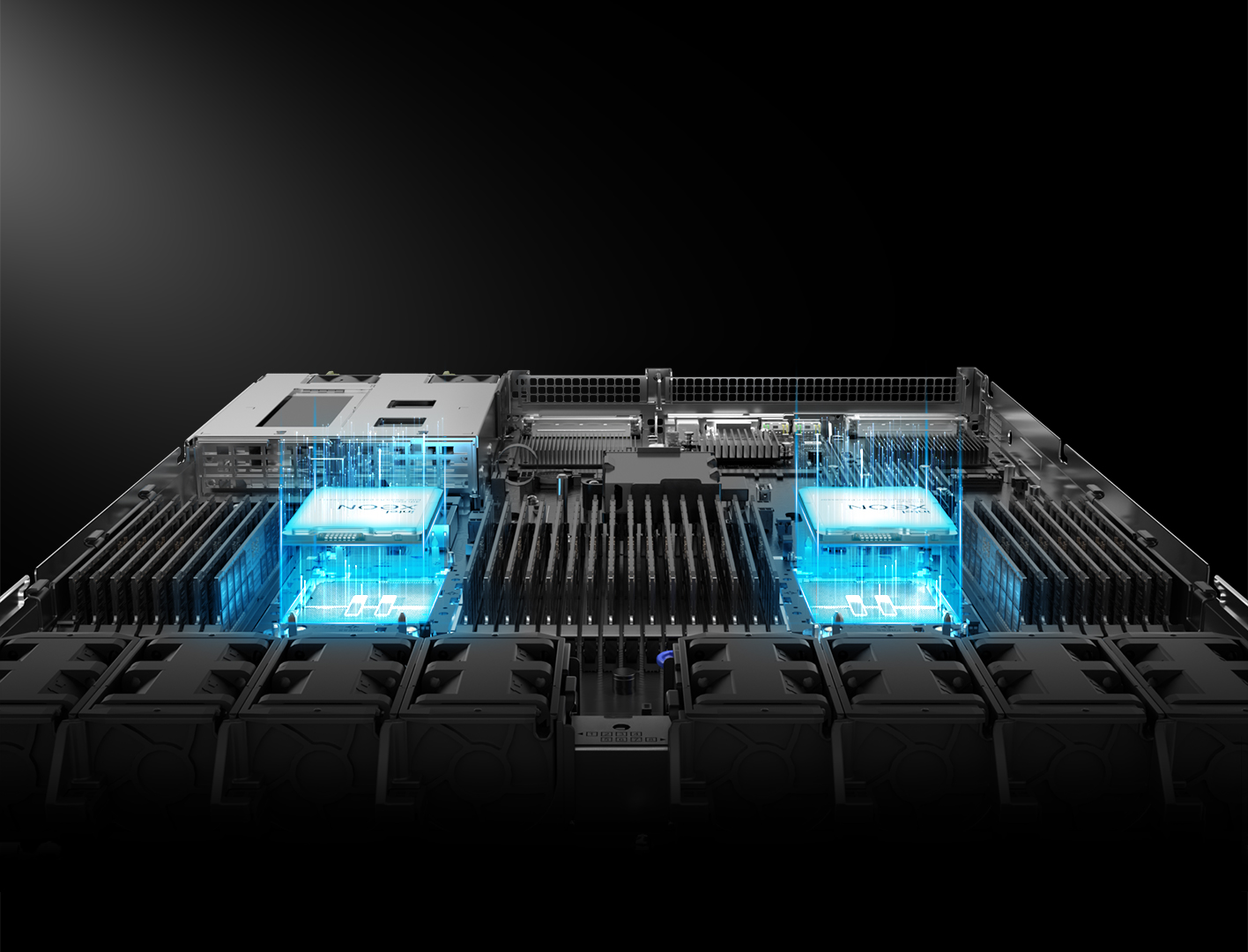

2 x 385 W CPUs and 32 x DDR5 DIMMs in 1U space
Faster Connectivity for Faster Applications
PCIe 5.0 and 400 Gbit/s NIC interconnection
High Reliability and Security

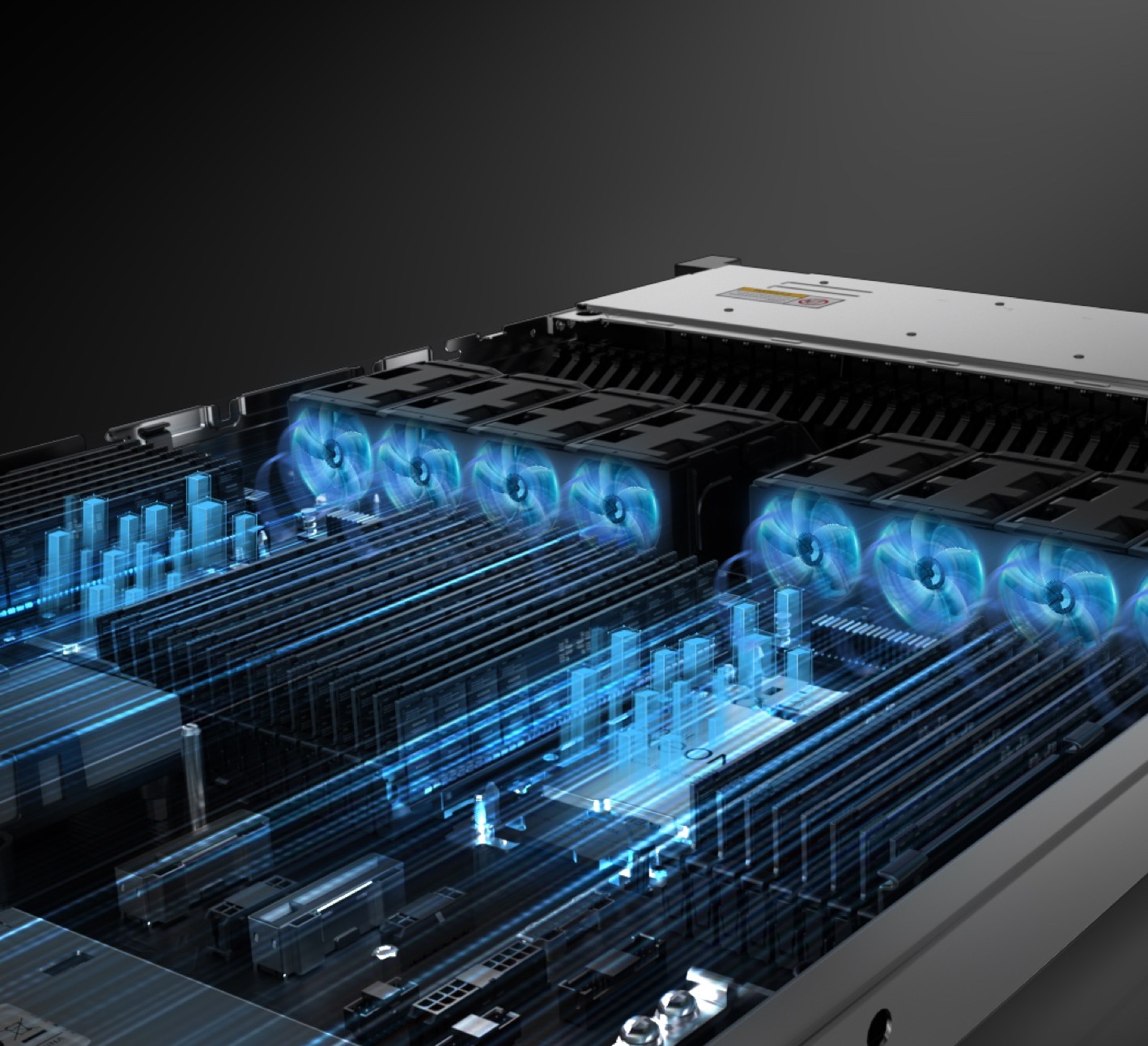

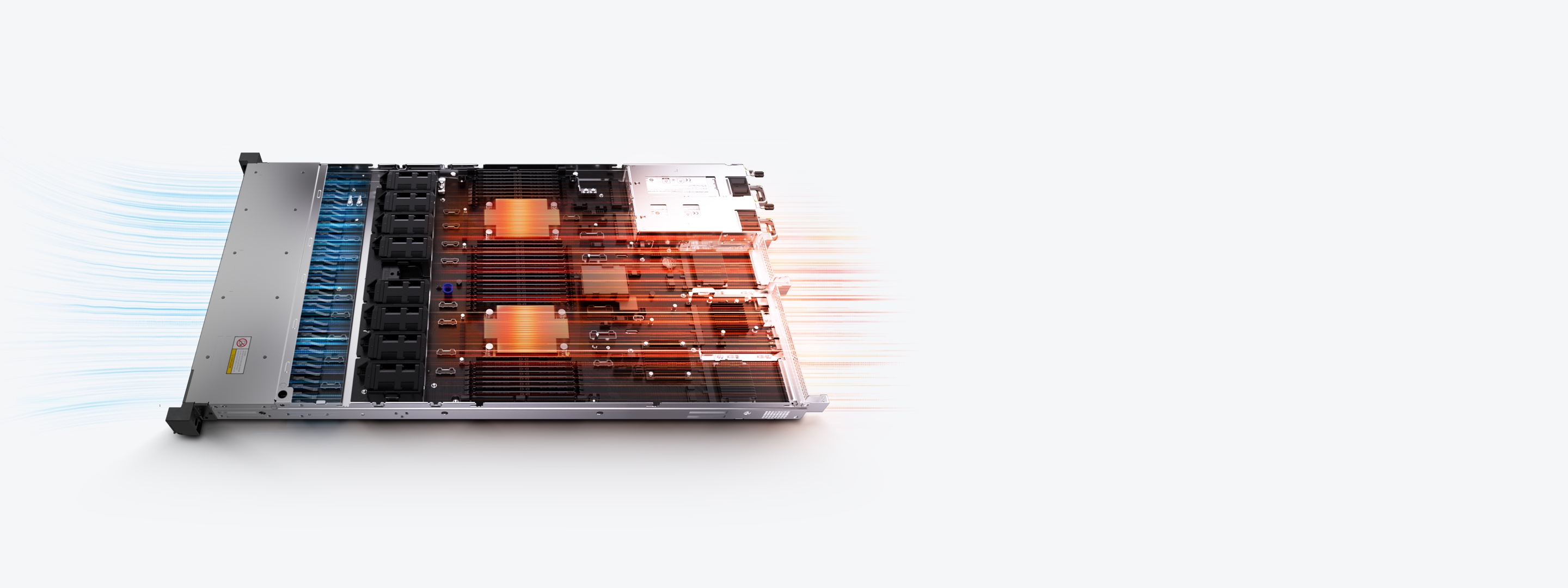

50% Better Heat Dissipation Capability Than a Single Heat Sink
Heat pipe remote heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptation
66% Less System Downtime
Unique AI memory fault self-healing ensures stable system running
Efficient Energy Saving
Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average
Saving Energy by up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs
Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load

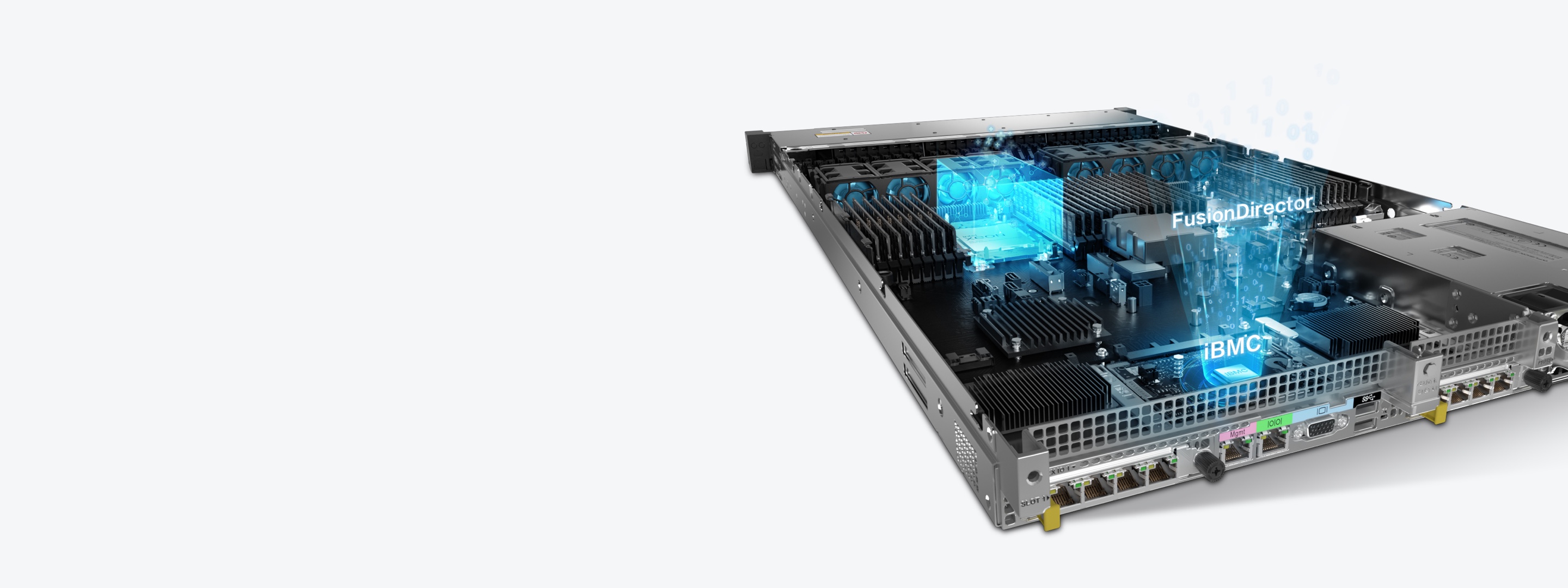

Intelligent O&M
VDO is currently a partner of xFusion in Vietnam. For the best pricing on genuine xFusion products, corporate and project-based clients are welcome to contact us.
Tel: 024 7305 6666
Tel: 028 7308 6666
️🛒 Server xFusion: https://vdoecommerce.com/may-chu-xfusion-cat.792
☎️ 1900 0366
General
Technical Specifications
Form Factor
• 1U rack server
Processor
• 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor
Chipset
• Emmitsburg PCH
Memory
• 32 x DDR5 DIMMs, with up to 5600 MT/s speed
Local Storage
Supports hot-swappable drives in the following configurations:
• 4 x 3.5ʺ SAS/SATA drives/SSDs
• 8–12 x 2.5ʺ SAS/SATA drives/SSDs
• 2 x M.2 SSDs
RAID
• RAID 0, 1, 10, 1E, 5, 50, 6, or 60
• Optional supercapacitor for cache data power failure protection
• RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network
• Provides expansion capability of multiple types of networks
• Supports OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required.
• Hot swap and PCIe 5.0 are supported
Technical Specs
PCIe Expansion
• Provides 5 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x PCIe slots
• 1 slot supports PCIe 5.0
Fan Module
• 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
Power Supply
• 900 W / 1200 W / 1500 W / 2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management
• The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management through the lifecycle
Connectivity
OS
• FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler.
Security
• Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
Operating Temperature
• 5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE Classes A1, A2, A3, and A4
Certification
• CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite
• L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
• Chassis with 3.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)
• Chassis with 2.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)
