Gigabyte Motherboard MC62-G40 (Rev.1.0)

Workstation on Another Level

AMD Ryzen™ Threadripper™ PRO Processors

For the professional workstation users that rely on workloads for visual effects design or rendering, there is the AMD Ryzen™ Threadripper™ PRO. Engineering, data science, and oil & gas exploration are amon g the fields that need the highest possible CPU platform to handle the large amounts of data in an efficient manner.

• Leading single and multi-threaded performance

• Top performance throughput with PCIe 4.0

• AMD Secure Processor: hardware root-of-trust

• Support for administrative and remote management

• Up to 64 cores

• Up to 128 PCIe 4.0 lanes

• 8-channel DDR4 3200MT/s

• Up to 2TB of system memory

• Multi-GPU support

• Up to 12 USB 3.2 Gen2 ports

• NVMe & SATA RAID support

MC62-G40 Product Overview

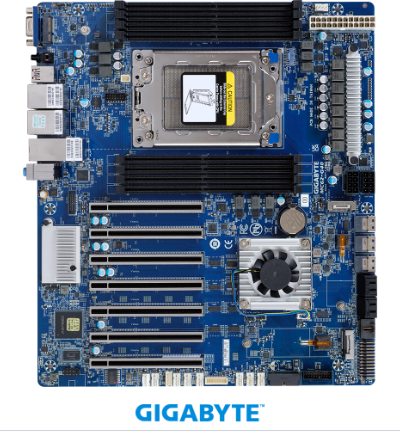

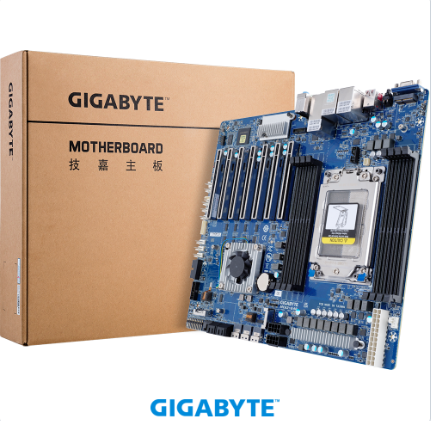

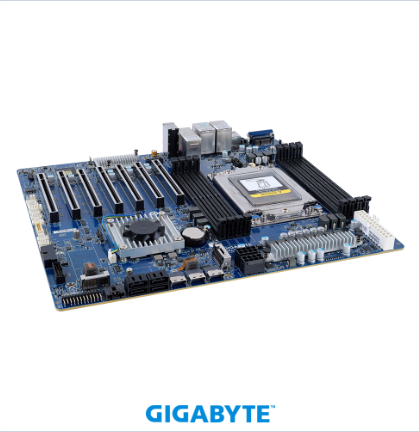

The Gigabyte MC62-G40 (Rev. 1.x) is a high-performance workstation/server motherboard designed for professionals requiring extreme computing power and reliability. Supporting single AMD Ryzen™ Threadripper™ PRO 5000/3000 WX-Series processors, it delivers exceptional multi-core performance for demanding workloads such as 3D rendering, simulations, and data-intensive applications.

With 8-channel DDR4 memory architecture and 8 DIMM slots, the MC62-G40 offers massive memory capacity and bandwidth for high-performance computing. It integrates dual 10GbE LAN (Intel® X550-AT2) and an additional 1GbE LAN (Intel® I210-AT), ensuring ultra-fast and stable network connectivity.

For storage and expansion, the board provides 3 SlimSAS connectors (PCIe Gen4 x4/SATA), 4 SATA 6Gb/s ports, and dual M.2 PCIe Gen4 x4 slots, enabling flexible, high-speed storage configurations. An extra M.2 slot for Wi-Fi add-in cards enhances wireless connectivity options.

Designed for scalability, the MC62-G40 features 7 PCIe Gen4 slots (x16 and x8), supporting next-generation GPUs, accelerators, and expansion cards. Combined with enterprise-class reliability, this motherboard is an ideal foundation for professional workstations and high-performance servers.

MC62-G40 Motherboard Block Diagram

Multiple Memory Type and High Capacity

8 x DIMM slots for 8-channel DDR4-3200 memory

AMD Ryzen™ Threadrippper™ PRO platform has support for multiple memory types: UDIMM(ECC) / RDIMM / LRDIMM, while supporting up to 2TB of total system memory. It can offer a flexible options for workstations.

High Performance

Supports 4 x Double Wide Accelerators

AMD Ryzen™ Threadrippper™ PRO utilizes leadership architecture allotting the MC62-G40 with 128 PCIe 4.0 lanes from 6 x PCIe 4.0 x16 and 1 x PCIe 4.0 x8 slots. This makes the MC62-G40 versatile to handle content creation, deep learning, and virtual machine applications.

Storage Support

Mix Drives

Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.

• 2 x M.2 2280 SSD slots (PCIe 4.0 x4 / SATAIII) from CPU for hot data

• 4 x SATAIII ports for cold data from WRX80 chipset

• 3 x SlimSAS ports (PCIe 4.0 x4 / 4x SATAIII) from WRX80 chipset

Connectivity

Dual Intel^® 10GbE and 1GbE connections

The Intel^® X550-AT2 adapter provides 2 ports of 10 GbE network connectivity as well as SR-IOV features. It is perfectly designed for demanding high bandwidth applications in virtualization, media centers, content creation, and data centers.

The Intel^® Ethernet Controller i210-AT supports Windows Server OS with adapter fault tolerance, link aggregation, adaptive load balancing and more.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface

• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions

• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom^® MegaRAID adapters.

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.

• GSM CLI: A command-line interface for monitoring and managing remotely.

• GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.

• GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.

• GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
