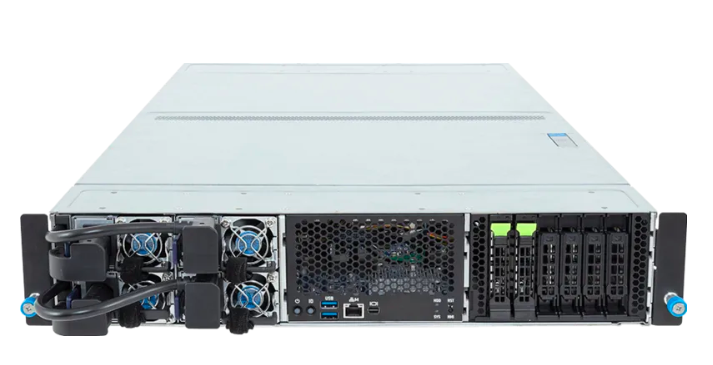

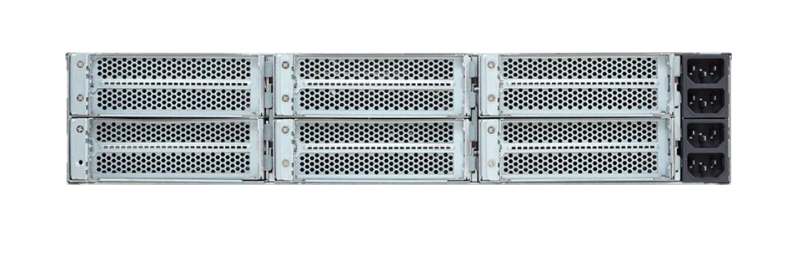

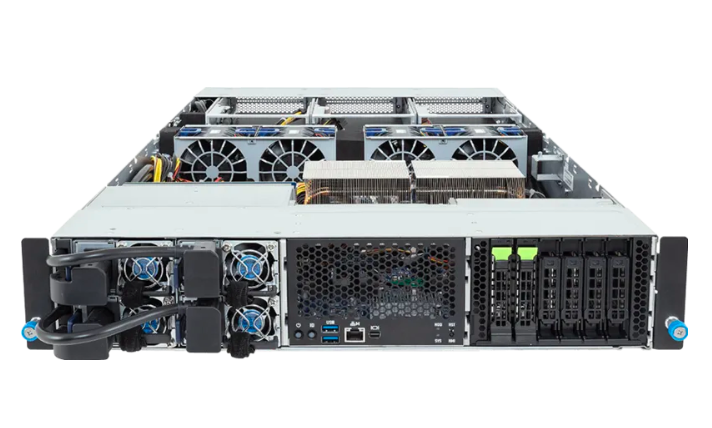

GIGABYTE XV23-VC0-AAJ2

The GIGABYTE XV23-VC0-AAJ2 is a 2U high-performance server designed for modern data-centres and AI/compute-intensive workloads. Equipped with dual NVIDIA Grace™ CPU Superchips connected via NVLink at up to 900 GB/s bandwidth, it supports up to 960 GB of LPDDR5X ECC memory. The system features four FHFL PCIe Gen5 ×16 slots (plus two additional Gen5 ×16 slots) to accommodate high-end GPUs (e.g., NVIDIA L40S) or add-in cards, and offers flexible storage via two 2.5" hot-swappable Gen5 NVMe bays plus two internal M.2 slots (PCIe Gen5 ×4). For power and reliability, it incorporates dual-redundant 2000 W 80-Plus Titanium power supplies and advanced features such as automatic fan speed control, SmaRT ride-through protection, SCMP power-throttling for fault resilience, and TPM 2.0 support. A tool-less drive bay design and built-in GIGABYTE management suite provide ease of service and remote operation.

Bringing a Whole New Level of Performance and Efficiency to the Modern Data Center

In response to the rapidly growing demand for high performance and low power consumption, the Arm-based NVIDIA Grace™ CPU excels in modern data center workloads, emphasizing massive data processing capabilities. Its extraordinary performance per watt, packaging density, and memory bandwidth sets a new standard for the industry. The NVIDIA Grace™ CPU Superchip represents a comprehensive upgrade from the traditional dual-processor concept. By interconnecting the two CPUs on a single module with NVIDIA^® NVLink^®-C2C, achieving an astonishing bandwidth of 900GB/s, and packing up to 960GB LPDDR5X memory into the module, the superchip can efficiently handle various workloads, especially memory-intensive applications.

NVIDIA Grace™ CPU Superchip

XV23-VC0-AAJ2 Block Diagram

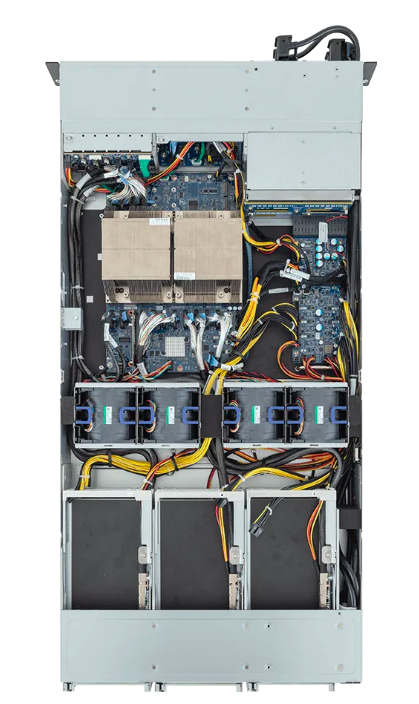

XV23-VC0-AAJ2 Product Overview

High Performance

Supports NVIDIA L40S GPU

The NVIDIA L40S GPU is the most powerful universal GPU for the data center, delivering end-to-end acceleration for the next generation of AI-enabled applications—from gen AI, LLM inference, small-model training and fine-tuning to 3D graphics, rendering, and video applications.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

High Availability

Smart Ride Through (SmaRT)

To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

Smart Crises Management and Protection (SCMP)

SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

User Friendly

Tool-less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface

• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions

• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom^® MegaRAID adapters.

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.

• GSM CLI: A command-line interface for monitoring and managing remotely.

• GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.

• GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.

• GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters
